商品の詳細:
|
| 機能: | 圧縮試験,紙チューブ圧縮強度試験,爆発試験,張力試験,紙試験器 | 名前: | 紙カップチューブ圧縮強度試験器 紙試験器 紙GSM試験器/破裂強度試験器 紙試験器 |
|---|---|---|---|
| ディスプレイ: | LCD,デジタルディスプレイ | ユニットの切り替え: | kgf,N. (選択可能) |
| 鉄のボール: | 16mm * 20 | 周波数範囲: | 60~300回/分 調節可能 |
| ドライブモード: | 電動式 | 総重量: | 120KG |
| 色: | オプション | 固定速度: | 50-300mm/分 |
| ソフトウェア: | TM 2101 | 寸法: | 530 (L) *490 (D) *960 (H) mm |
| テスト速度: | 12.7mm/min | 摩擦速度: | 85 |
| 力の決断: | 最大試験力 fs の 1/500000 | 力: | AC 220V、2.6A |
| 使用: | 包装材料 | パライウッドのサイズ: | H48イン * D48イン |
| ポート: | 400～1500 mm | ||
| ハイライト: | Paper Packaging Impact Tester,Digital Pendulum Impact Tester,Precision Digital Pendulum Impact Tester |
||

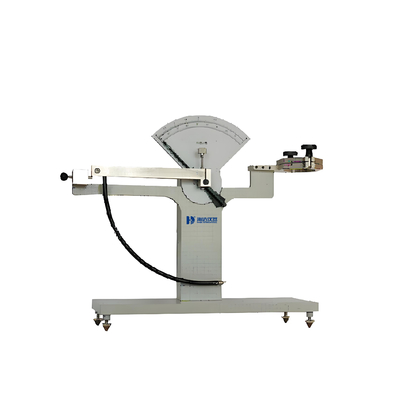

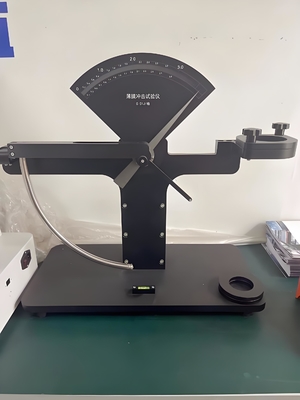

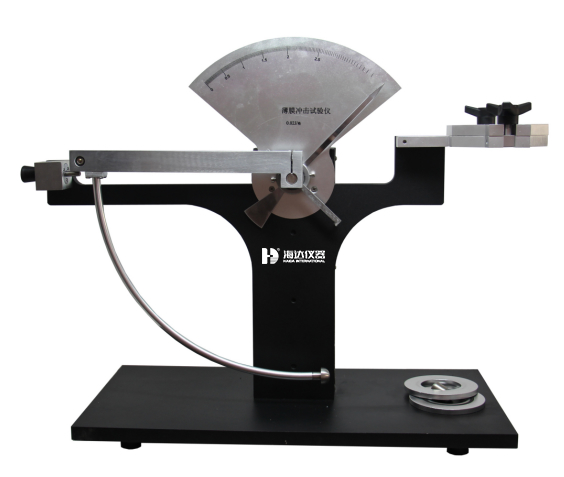

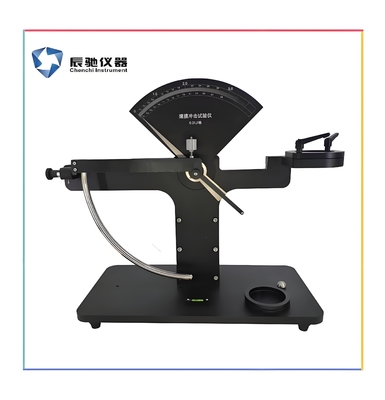

The 5086-HD Film Pendulum Impact Tester measures the pendulum impact resistance of plastic films, sheets, and composite films using a standard pendulum head and weighted pendulum arm. Ideal for testing impact toughness of various packaging materials including food and medicine packaging films, metal foils, and paper composites.
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Steel Ball | 16mm * 20 |
| Frequency Range | 60-300 round/min adjustable |
| Drive Mode | Power-driven |
| Gross Weight | 120kg |
| Clamping Speed | 50-300mm/min |
| Test Speed | 12.7mm/min |
| Force Resolution | 1/500000 of the maximum test force fs |
| Power | AC 220V，2.6A |
| Dimensions | 530(L)*490(D)*960(H)mm |
| Parameter | Specification |
|---|---|
| Capacity | 3J |
| Scale value | 0.01J |
| Pendulum swing radius | R280 mm |
| Pendulum angle | 90° |
| Impact speed | 2.5m/S |
| Impact head size | Φ12.7 mm |
| Sample holder diameter | Φ60, Φ89mm |
| Sample size | 100 X 100 mm |
Complies with GB/T8809 and ASTM D3420 testing standards.
Ideal for testing impact resistance of various materials including PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber films, metal foil materials, and paper/paperboard composites used in packaging applications.
The instrument uses a semi-spherical punch to impact and break the sample at a controlled speed, measuring the energy consumed during impact to evaluate the material's anti-pendulum impact energy value.
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
