商品の詳細:
|
| 高温。露出range*1: | +60~への+200°C | 低温。露出range*1: | -65to 0の°C |
|---|---|---|---|
| 臨時雇用者。変動*2: | ±1.8°C | 上限を予備加熱しなさい: | +200°C |
| 低限を事前に冷しなさい: | -65°C | 臨時雇用者。引きのダウンタイム*3: | 包囲された臨時雇用者。70min内の-65°Cに |
| ダンパーの運転単位: | エアシリンダ | 正当な包囲された条件: | +5~30°C |
| 電源: | AC380V、三相50/60Hz 30A | 冷水の供給pressure*6: | 02~0.4Mpa |
| 冷水の供給rate*6: | 8mの³ /h | 使用: | 熱ショック試験室 |
| ハイライト: | HD-E810 HAST test chamber,Highly Accelerated Stress Test Chamber,Environmental test chamber with warranty |
||
HAST, or High Accelerated Stress Test, is a test method that accelerates product ageing by subjecting samples to high temperatures, high humidity, and high pressure. It is widely used in industries such as PCBs, IC semiconductors, connectors, circuit boards, magnetic materials, polymer materials, EVA, and photovoltaic components to conduct accelerated ageing life tests on related products. This test is used to evaluate product sealing, moisture absorption, and ageing performance.

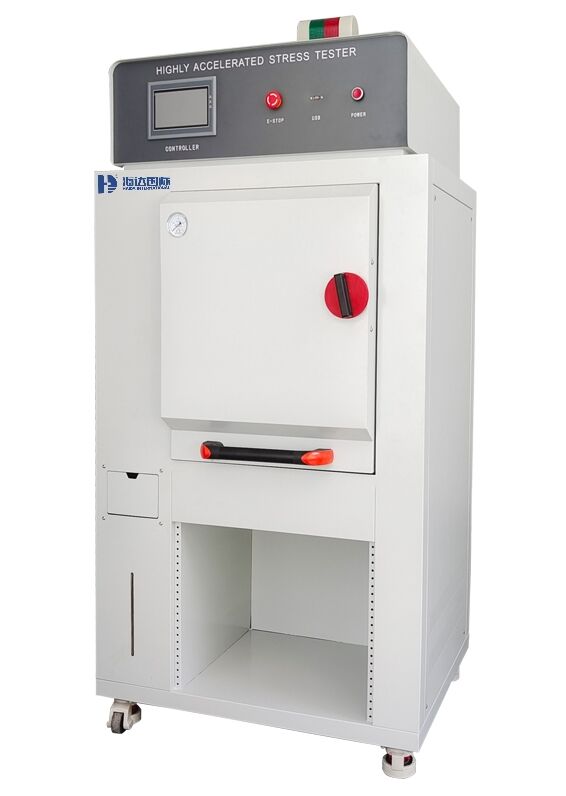

| Name | Highly Accelerated Stress Test Chamber |
|---|---|
| Sample limitation | This test equipment prohibits: Testing or storage of samples of flammable, explosive and volatile substances. Testing or storage of samples of corrosive substances. Testing or storage of samples from strong electromagnetic emission sources. |
| Basic Information | |

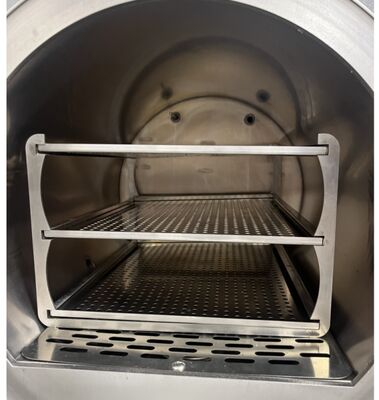

| Inner dimension | Φ400×D 500 (mm) |
| Outer dimension | About 1050x 980 x 1850 mm (W * D * H) Subject to the final drawing |
| Performance | |
| Environmental conditions | Temperature of +25℃, Relative humidity ≤ 85%RH, and without load |
| Test Method | GB/T 5170.2-1996 |
| Temp. Range | +105 ℃ ～ +147 ℃ (vapor temperature ). |
| Temp. Fluctuation | ±0.5℃. |
| Temp. Uniformity | ±2℃；. |
| Humidity Range | 75% ～ 100 %RH |
| Humidity Display | ±0.5%RH. |
| Humidity Control Stability | ±3.0% RH. |
| Pressure Range | 1.2~2.89Kg / cm2 (included 1atm)(Pressure inside) |
| Uniformity of pressure fluctuation | ±0.1Kg |
| Heating Rate | Ambient→ + 147℃ About 55 min. |
| Pressure Rising Time | 0.00 Kg ～ 1.04 Kg / cm2 About 45 min； |
| Condition of loading | Magnetic materials |
| Bias terminal | The bias voltage test terminal can withstand a voltage of up to 3000V(optional function). Please specify when ordering |
| Meet Standard | IEC60068-2-66; JESD22-A102-C; JESD22-A110-B;JESD22-A118; GB/T 2423.40 |
| Structure | |
| Insulation structure | Outer wall material: SUS#304 stainless steel plate or high-grade steel plate with plastic coating. Inner wall material: Stainless steel plate SUS# 316 3mm. The insulation material for the chamber body: rock wool and rigid polyurethane foam insulation. |
| Chamber structure |
|
| Air conditioning | Heaters, humidifiers, water supply and drainage outlets, temperature and humidity sensors, pressure sensors |
| Controller | |
| Main Interface | The humidity and steam temperature are controlled by a Mitsubishi customized color touch PLC  |
| Setting interface | It adopts the original imported 7-inch microcomputer color LCD touch screen direct key type, with a wide viewing Angle and high contrast function process controller in both Chinese and English, and is equipped with multiple PID control functions. |
| Controller Software |
7 "TFT true-color LCD touch screen, direct touch option on the screen. The set (SV) and actual (PV) values are displayed directly. The remaining time of the current execution can be displayed. Run the cumulative time function. The set values are displayed in the form of graphical curves and have the function of real-time display of program curve execution. It features a separate editing interface, allowing for the input of temperature, humidity, pressure and test time. Chinese and English can be switched freely. The fault prompt screen is displayed; The screen can be adjusted for backlighting. The screen display protection function can be set for timing, TIMER or manual off. |
| Optional | |
| Centralized Monitoring software (Optional Function) |
|
| Condition for Machine |
|
| Installation Site |
|
| Environment |
|
| Power condition |
|
| Requirements for storage environment |
|
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
2. Middle service
3. After sale service
4,Commitment:
5,Good Packaging:
