名義容量 1ml-60ml スライジング性能テスト

大画像 : 名義容量 1ml-60ml スライジング性能テスト

商品の詳細:

起源の場所:	中国
ブランド名:	Haida
証明:	CE,,ISO
Model Number:	8038-HD

お支払配送条件:

Minimum Order Quantity:	1
価格:	交渉可能
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

連絡先

名義容量 1ml-60ml スライジング性能テスト

説明

Test item:	Sliding performance test of sterile syringes	Nominal capacity:	1ml~60ml
Range of test tension and test thrust force value:	0~40N(with force error not greater than ±1%)	決議:	0.01N
Rate of tensile and thrust tests:	100 +5mm/min	据え付け品:	ステンレス鋼 (握りしめやすい)
Force measuring mechanism:	built-in	プリンター:	空中用針プリンター
Power:	AC 90V-240V/50Hz, 70W
ハイライト:	スライジング性能試験器 , 60ml スライジング性能テスト

Sealing Negative Pressure Tester

Description:

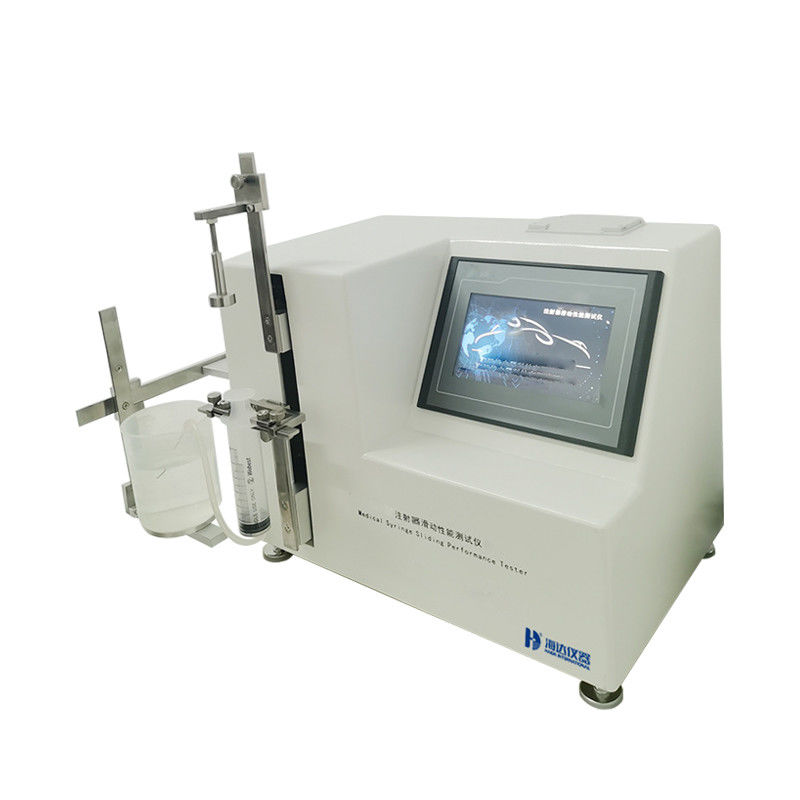

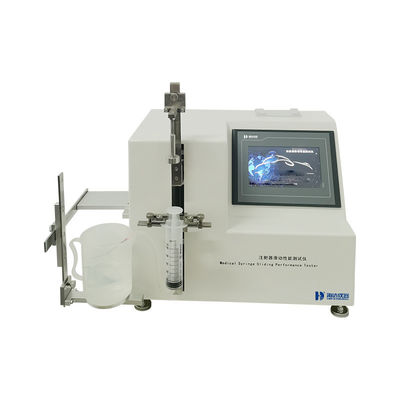

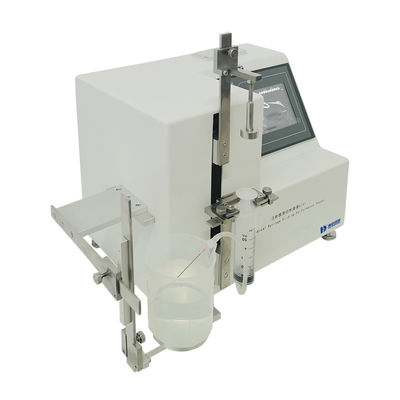

Syringe Sliding Performance Tester is an instrument specially designed to measure the sliding resistance of the syringe mandrel in the syringe barrel, which plays an important role in the medical device industry.

Test Standard:

GB15810-2019: ISO 7886

名義容量 1ml-60ml スライジング性能テスト 0

Technical Parameters

Model	8038-HD
Test Standard	GB15810-2019: ISO 7886
Test item	Sliding performance test of sterile syringes
Nominal capacity	1ml~60ml
Range of test tension and test thrust force value	0~40N(with force error not greater than ±1%)
Resolution	0.01N
Waiting time from the end of tensile test to the start of thrust test	30 ±1s
Rate of tensile and thrust tests	100 +5mm/min
Power off storage	Yes
Power	AC 90V-240V/50Hz, 70W
Sensor	High-precision force sensor (with software and hardware protection function)
Fixture	Stainless steel (easy to grip)
Force measuring mechanism	built-in
Printer	Airborne needle printer
Printing method	You can print 8 or 10 test data or13 test data as well as the average and deviation values each time
Data storage	USB flash drive can be imported into the computer for storage

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
