High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

大画像 : High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

商品の詳細:

Place of Origin:	China
ブランド名:	Haida
証明:	CE,,ISO
Model Number:	60085-HD

お支払配送条件:

Minimum Order Quantity:	1
価格:	交渉可能
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

連絡先

High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

説明

使用法:	品質管理とテスト	トランス容量:	1000va
影響の速度:	3.4m/s	走路:	長さ100mm
外部サイズ:	900500800 (WDH)	影響の角度:	90度
温度テスター:	200°Cへの室温	寸法:	650mm×400×830mm
タイミング範囲:	3min (任意に設定できます)	現在の測定の範囲:	10pA~1mA
据え付け品の負荷:	2.5N	オゾンによって作り出されるモード:	オゾン発電機か紫外線吸収方法
水平:	500mm * 250mm * 500m	標本の厚さ範囲:	0~60mm
標本のサイズ:	16mm、（d） 6-15mm	観察者:	CIE 10° 標準観測者
仕様:	20-88HRA、20-100HRB、20-70HRC	圧力決断:	0.001Mpa (0.01barまたは1PSI)
試験モードA:	室温	表示:	デジタル
テスト速度:	調整可能	球の重量:	5kg
エクステリア寸法:	95x150x105cm	パンチングストローク:	25mm
温度の均一性:	±2℃	精度を制御します:	±0.2°C
ハイライト:	Thermal Conductivity Rubber Plastic Tester , research Rubber Plastic Tester , High Precision Rubber Plastic Tester

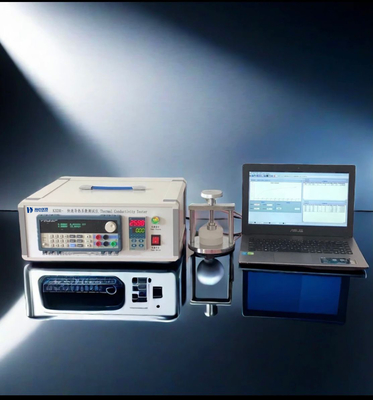

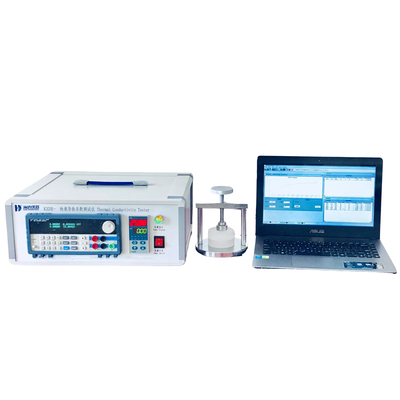

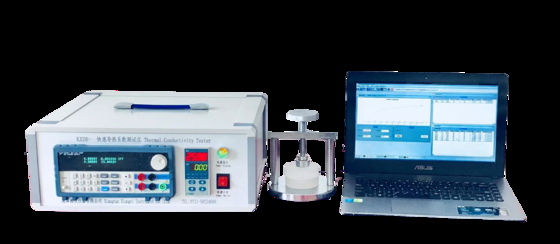

HD-KDRX-II Thermal Conductivity Tester

(Hot Wire Method)

Description:

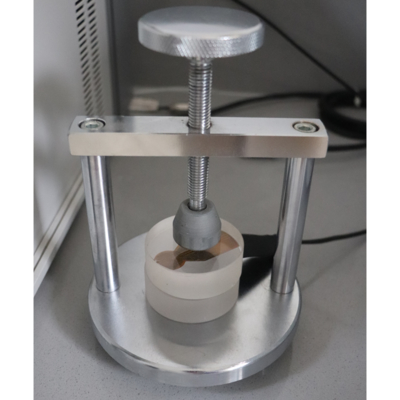

The hot wire thermal conductivity tester (transient method) is measured using the line source test method of the thermal probe. This thermal probe has a very large aspect ratio to achieve the simulation conditions of an infinitely long and infinitely thin heat source. It is easy to use, with a plug-and-play probe sensor quick interface and simple software interface operation, allowing users to quickly master and accurately operate. From the beginning of preparation for the test to obtaining the results, it usually takes only 1~2 minutes. It has the advantages of a wide range of applications, fast measurement speed, and accurate measurement results. It has the advantages of small size, easy to carry, and higher cost performance to meet the production, quality inspection, and R&D needs of related industries.

High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center 0

Technical Parameters

Item	Parameters
Thermal conductivity range	0.0001~50 W/mK; resolution: 0.0001w/mk
Measurement relative error	≤3%
Repeatability error	≤3%
Temperature resolution	0.01℃
Measuring time	2~180 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Tested samples	Plastic, soil, soft rock, liquid; paste, granule, powder and other materials

Sample shape	Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required
Sample size	Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm
Control mode	By computer and software
Machine dimension	(LWH)380400165mm
Machine weight	Approx. 5KG
Power	AC 220V±10%, 50/60 Hz, 200W

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
