商品の詳細:
|
| 機能: | 圧縮試験,紙チューブ圧縮強度試験,爆発試験,張力試験,紙試験器 | 名前: | 紙カップチューブ圧縮強度試験器 紙試験器 紙GSM試験器/破裂強度試験器 紙試験器 |
|---|---|---|---|
| ディスプレイ: | LCD,デジタルディスプレイ | ユニットの切り替え: | kgf,N. (選択可能) |
| テストの速度: | 10 ~ 200 mm/min | 寸法: | 360*264*400mm、70 *34 * 60 cm、85*65*80cm |
| 測定範囲: | 250〜5600 Kpa,10〜1000mN | 表示モード: | LCDディスプレイ、デジタルモード |
| 設計基準: | ISO 2248、ASTM-D2210、TAPPI T403、GB/T4857-92、JIS Z0202-87 | ||
| ハイライト: | bottle axis deviation tester,Accurate Bottle Axis Deviation Tester |
||
| Parameter | Value |
|---|---|
| Sample Diameter | Positive claw 3-55mm, reverse claw 55-145mm |
| Centering Chuck | Four-claw/three-claw optional |
| Measuring Range | 0-12.7mm |
| Resolution | 0.001mm |
| Indication Error | ±0.005mm |
| Measurement Error | ≤0.05mm |
| Measurable Height | 5mm-400mm |
| Weight | 20kg |
| Dimensions | 330mm × 240mm × 240mm |

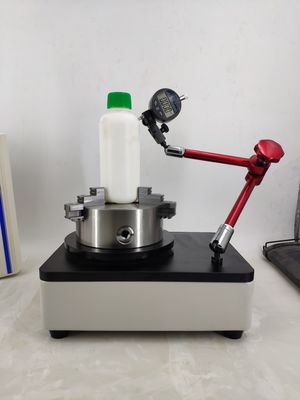

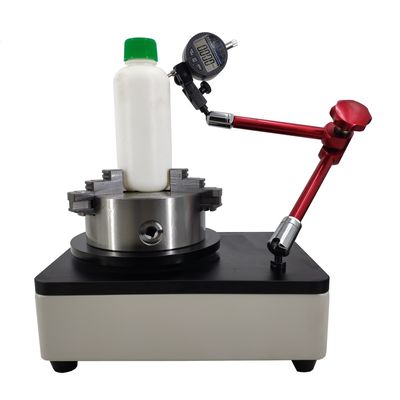

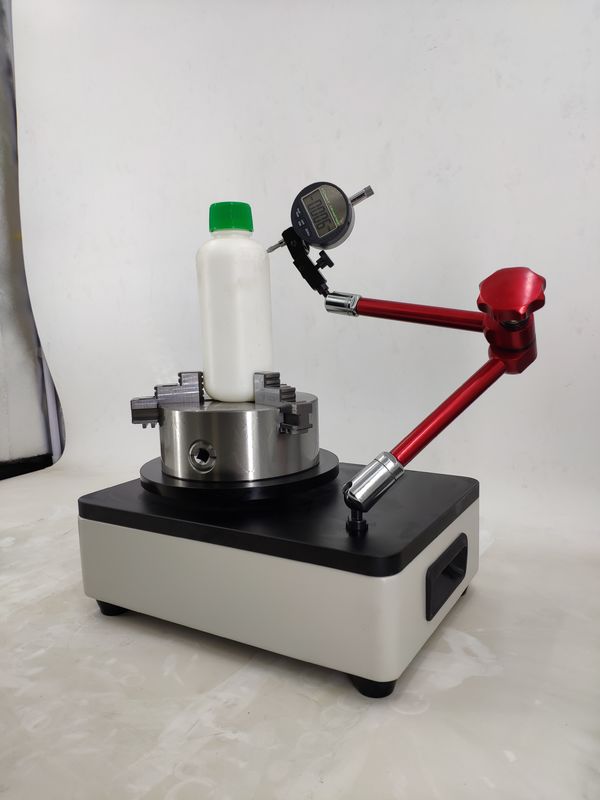

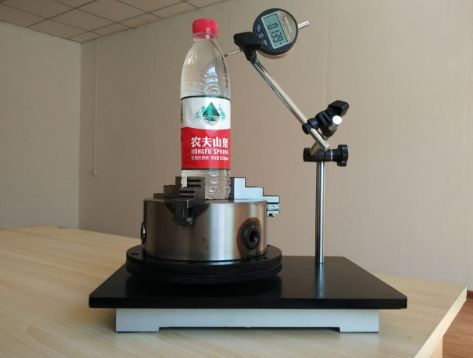

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.
Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.
Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
