商品の詳細:
|
| 機能: | 圧縮試験,紙チューブ圧縮強度試験,爆発試験,張力試験,紙試験器 | 名前: | 紙カップチューブ圧縮強度試験器 紙試験器 紙GSM試験器/破裂強度試験器 紙試験器 |
|---|---|---|---|
| ディスプレイ: | LCD,デジタルディスプレイ | ユニットの切り替え: | kgf,N. (選択可能) |
| テストの速度: | 10 ~ 200 mm/min | 寸法: | 360*264*400mm、70 *34 * 60 cm、85*65*80cm |
| 測定範囲: | 250〜5600 Kpa,10〜1000mN | 表示モード: | LCDディスプレイ、デジタルモード |
| 設計基準: | ISO 2248、ASTM-D2210、TAPPI T403、GB/T4857-92、JIS Z0202-87 | ||
| ハイライト: | Digital Display Tube Compressive Tester,LCD Paper Tube Compressive Tester,Paper Tube Compressive Strength Tester |
||
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Name | Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Testing speed | 10 ~ 200 mm/min |
| Dimension | 360*264*400mm, 70*34*60 cm, 85*65*80cm |
| Measuring range | 250-5600 Kpa, 10 ~ 1000mN |
| Display mode | LCD display, digital mode |
| Design criteria | ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87 |

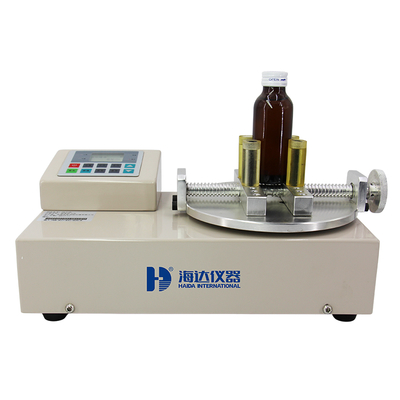

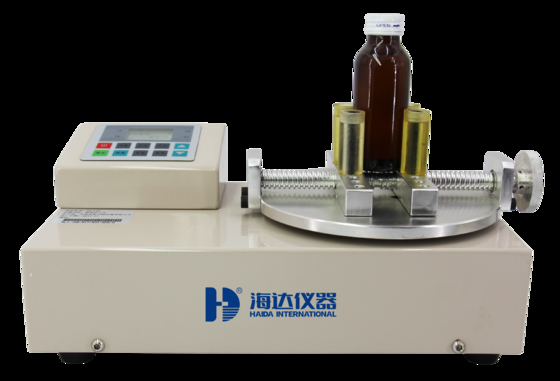

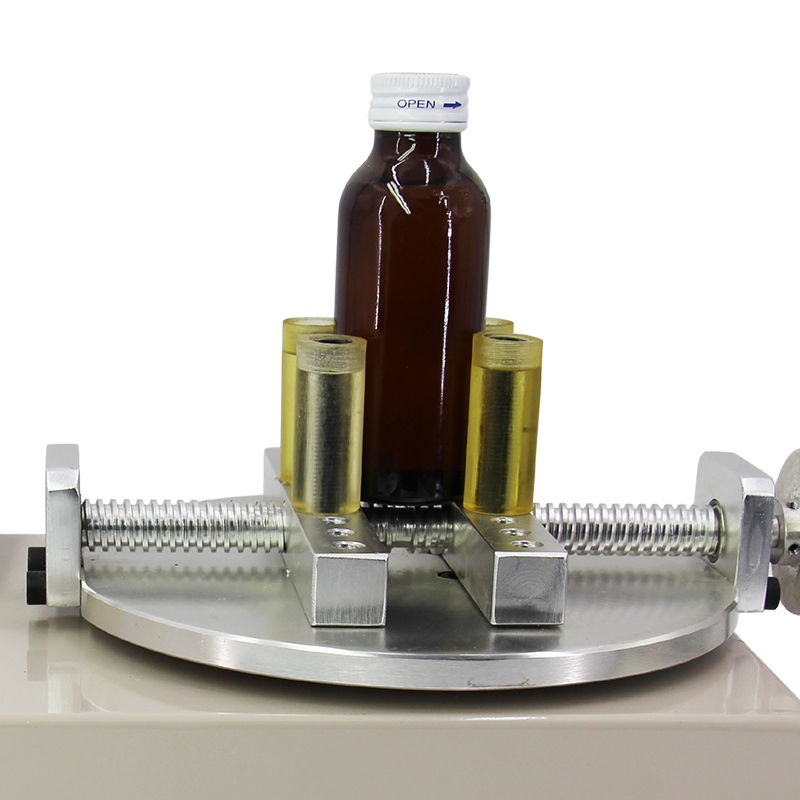

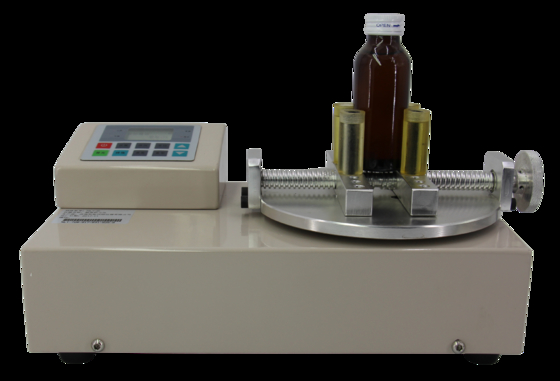

The 5079-HD Bottle Capping Torque Tester is designed for precise torque measurement in the pharmaceutical, food and beverage, and filling industries. It accurately tests the opening torque of various packaging products including bottles, hoses, and nozzle closures.
| Item | Description |
|---|---|
| Measuring range | 0～99ib.in |
| Resolution | 0.001 Nm |
| Accuracy | ±0.5% |
| Display mode | Touch screen; LCD display |
| Unit | N.m; kg.cm; ib.in; N.cm |
| Clamping range | Ф25mm～Ф170mm (Diameter) |
| Power supply | 5V rechargeable battery AC220V 50HZ power adapter |
| Data output method | Micro printer, optional PC output |
| Save quantity | 1～99 |
| Machine size | 330*200*200mm |
| Weight | 15 KG |
| Design standard | GB/T 17876, ASTM D 2063, ASTM D 3198, ASTM D 3474 |
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
