商品の詳細:
|
| 水温維持するため: | 60±2℃ | タンク体材: | 1分間に2~5サイクル |
|---|---|---|---|
| 機械のサイズ: | 1350mm*1050mm*2550mm | 総重量: | 210kg |
| 熱源: | 陶磁器のヒーター | タッチスクリーン: | LCD |
| 寸法: | 1100mm*532mm*389mm | 画面: | LCD画面 |
| 試験時間: | 調整可能 | 問題に対する回答: | 24時間以内に |
| 試験パラメータ: | 温度,圧力,重量など | 検査結果: | 定量および定性データ |
| 試験方法: | 衝撃,磨損,化学的耐性など | スケール表示: | 1度 |
| 使用: | 耐久性と安全性のための調理器具のテスト | ||
| ハイライト: | Toilet Seat Impact Tester,Adjustable Time Toilet Seat Impact Tester,LCD Screen Toilet Seat Impact Tester |
||
| Attribute | Value |
|---|---|
| Water temperature maintain | 60±2℃ |
| Tank body material | 2～5 cycles per minute |
| Machine Size | 1350mm*1050mm*2550mm |
| Gross Weight | 210KG |
| Heat source | Ceramic heater |
| Touch screen | LCD |
| Dimensions | 1100mm*532mm*389mm |
| Display | LCD screen |
| Testing Time | Adjustable |
| Reply For Problem | Within 24 hours |
| Test Parameters | Temperature, pressure, weight, etc. |
| Test Results | Quantitative and qualitative data |
| Test Methods | Impact, abrasion, chemical resistance, etc. |
| Scale Display | 1 degree |
| Usage | Testing cookware for durability and safety |

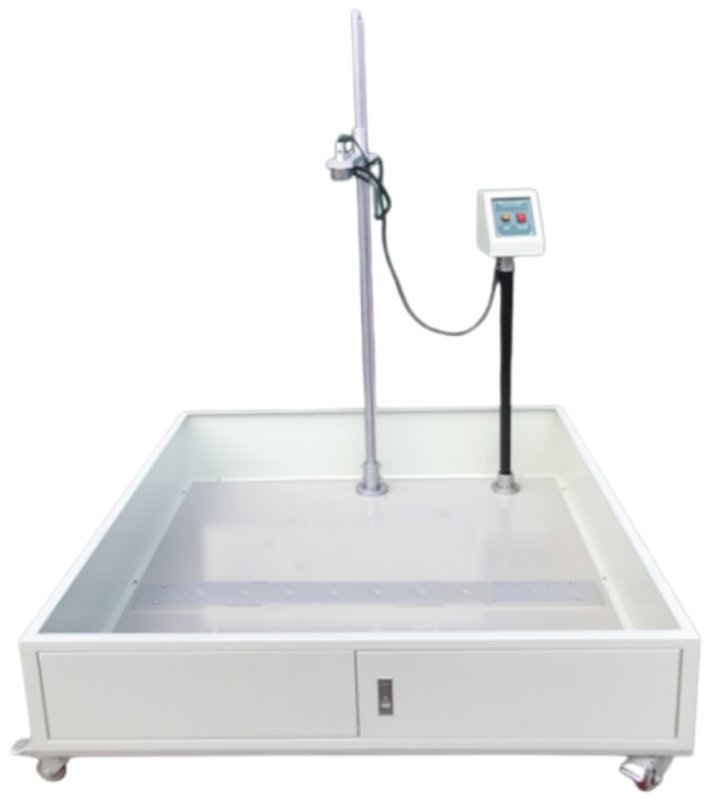

This machine is designed for measuring the impact resistance of electronics, electrical appliances, home appliances, plastics, communication devices, and other finished products or components during installation. It assesses product structural integrity by dropping a specified weight steel ball from a predetermined height onto test materials to observe damage levels.

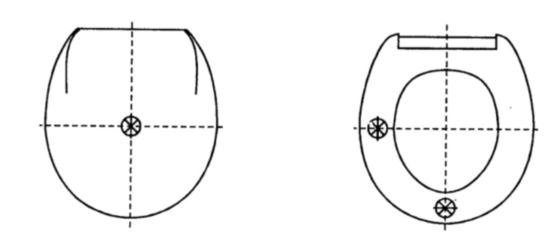

A 38mm diameter steel ball weighing 0.225kg is dropped freely from 455mm height onto the center of the test specimen. Impact positions are clearly indicated in the accompanying diagram.
JC/T 764-2008 5.4.7
| Feature | Specification |
|---|---|
| Impact height range | 0-1000mm (manually adjustable, steel ruler shows scale) |
| Specimen size | Toilet seat size |
| Drop height display | Graduated steel ruler indicates vertically |
| Drop height accuracy | 1mm |
| Drop bar shape | Square rod |
| Control and lifting method | Circuit-controlled electromagnet suction cup, manually lifting and lowering electromagnet fixing rod |
| Alignment device | Infrared positioning for fixed-point testing |
| Impact ball specification | 225g (φ38mm) |
| Control box | Protective mesh box around the bottom |
| Volume | Approx. 1000*1000*1050mm |
| Power Supply | AC220V 50Hz |
Established in 2004 and located in Dongguan, Guangdong Province, China, Haida International Equipment specializes in R&D and production of material physical properties testing equipment. With independent research centers and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.
A: Our standard warranty is one year, including technical support and parts replacement. If necessary, our engineers can provide on-site service.
A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport transfers.
A: Yes, we offer both standard and fully customized machines tailored to your specific requirements.
