商品の詳細:
|
| 熱源: | セラミックヒーター | タッチスクリーン: | LCD |
|---|---|---|---|
| 画面: | LCD画面 | テスト時間: | 調整可能 |
| probmeへの返信: | 24時間以内 | テストパラメーター: | 温度、圧力、重量など |
| テスト結果: | 定量的および定性的データ | テスト方法: | 衝撃、摩耗、耐薬品性など |
| スケールディスプレイ: | 1度 | 使用法: | 耐久性と安全性の調理器具のテスト |
| スチールインパクトハンマー: | 1kg±50gの質量を持つ | スケール解像度: | 1° |
| 温度範囲: | 0-300°C | カスタマイズ: | いらっしゃいませ |
| 環状テスト: | 15000周期（調整可能） | 工場: | はい |
| 正確さ: | ±1°C | 電源: | 220V |
| ストークをテストします: | 20〜60 mm（調整可能） | 総重量: | 210kg |
| アプリケーション: | 実験室、キッチン | 交通機関: | 海で |
| 重さ: | 5kg | 認定: | CE、ISO |
| ハイライト: | Adjustable Parameters Swing Life Test Machine,Toilet Seat Swing Life Test Machine |
||
| Attribute | Value |
|---|---|
| Heat Source | Ceramic heater |
| Display | LCD screen |
| Testing Time | Adjustable |
| Test Parameters | Temperature, pressure, weight, etc. |
| Test Results | Quantitative and qualitative data |
| Test Methods | Impact, abrasion, chemical resistance, etc. |
| Temperature Range | 0-300°C |
| Accuracy | ±1°C |
| Power Supply | 220V |
| Test Cyclic | 15000 cyclic (adjustable) |
| Gross Weight | 210KG |
| Certifications | CE, ISO |

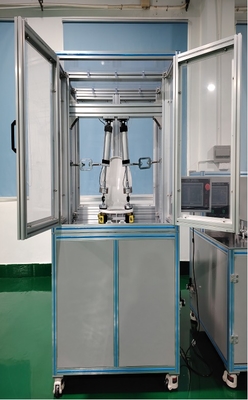

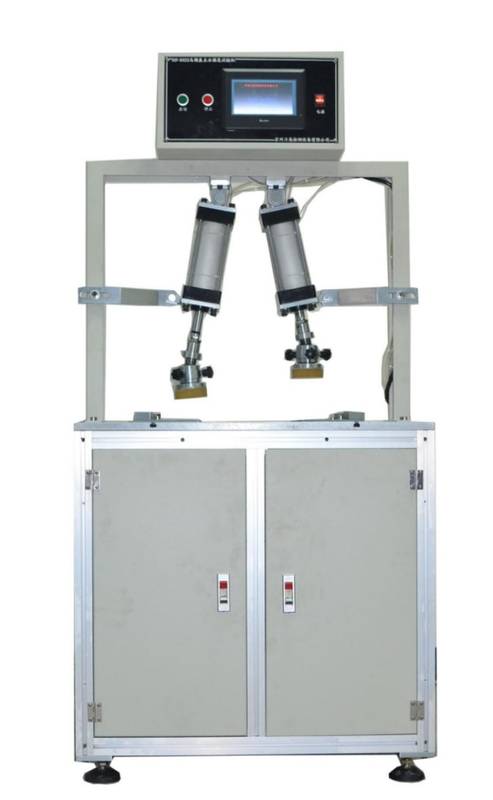

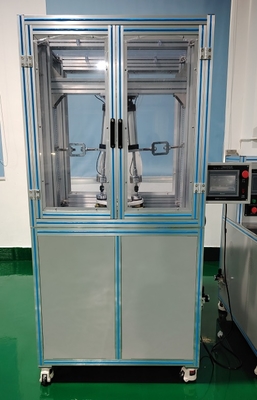

This equipment is designed for swing life testing of toilet seat rings and covers. The sample is installed on the test platform where two cylinder mechanical hands alternately push and press the seat ring and cover (1 second push with 0.5 second interval) to simulate normal use conditions.
Test Standard: JCT 764-2008 Appendix A
| Function | Swing life test of toilet seat ring and cover |
|---|---|
| Swing Thrust | 0-2000N (adjustable) |
| Force Application Method | Pressure applied by cylinder, force value adjusted via air pressure regulation |
| Cylinder Specifications | Inner diameter φ50.8mm, stroke 127mm |
| Pressure Plate Specification | Diameter φ76.2mm, thickness 19mm |
| Force Application Time | 0-99.9 seconds (adjustable) |
| Control Mode | PLC + human-machine interface |
| Working Cycles | 0-99,999 times (adjustable) |
| Dimensions | 1000mm * 800mm * 1500mm |
Established in 2004 and located in Dongguan, Guangdong Province, China, Haida specializes in R&D and production of material testing equipment. With our own research center and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.
