商品の詳細:
|
| heat source: | Ceramic heater | touch screen: | LCD |
|---|---|---|---|
| Display: | LCD screen | Testing Time: | Adjustable |
| Test Parameters: | Temperature, pressure, weight, etc. | Test Results: | Quantitative and qualitative data |
| Test Methods: | Impact, abrasion, chemical resistance, etc. | Usage: | Testing cookware for durability and safety |
| Steel Impact Hammer: | Having a mass of 1KG ±50g | Customized: | Welcome |
| Test Cyclic: | 15000 cyclic (adjustable) | Factory: | Yes |
| Application: | Laboratory, Kitchen | Transportation: | By Sea |
| ハイライト: | Sanitary Hose Tensile Test Machine,Cookware Sanitary Hose Tensile Test Machine,Touch Screen Tensile Test Machine |
||
| Attribute | Value |
|---|---|
| Heat Source | Ceramic Heater |
| Touch Screen | LCD |
| Display | LCD Screen |
| Testing Time | Adjustable |
| Test Parameters | Temperature, Pressure, Weight, etc. |
| Test Results | Quantitative and Qualitative Data |
| Test Methods | Impact, Abrasion, Chemical Resistance, etc. |
| Usage | Testing Cookware for Durability and Safety |
| Steel Impact Hammer | 1KG ±50g |
| Customized | Welcome |
| Test Cyclic | 15000 Cyclic (Adjustable) |
| Factory | Yes |
| Application | Laboratory, Kitchen |
| Transportation | By Sea |

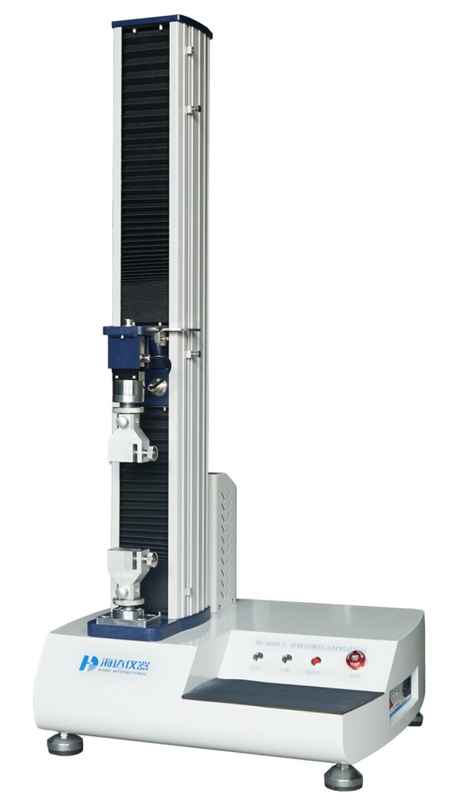

This computer-controlled machine is designed to test the tensile strength of shower and tap hoses with precision and reliability.
| Capacity of Load Sensor | 0-200kg |
| Unit Switching | Kg, N, Lb (freely switchable) |
| Load Analysis Degree | 1/250,000 |
| Load Accuracy | ±0.2% |
| Displacement Switching | mm, cm, in |
| Force Measurement Display Accuracy | 0.001Kg |
| Displacement Measurement Display Accuracy | 0.001mm |
| Test Stroke | 2000mm |
| Speed Test Range | 0.05-500mm/min, stepless speed regulation |
| Transmission System | Servo motor, imported ball screw, and computer software YDL |
| Safety Devices | Overload emergency stop, upper/lower travel limit, automatic stop at breakpoint |
| Test Fixtures | Custom four-point bending fixtures available |
| Accessory Configuration | Includes desktop industrial computer |
| Working Power Supply | 220V 50HZ |
| Working Power | 0.75KW |
| Overall Weight | Approximately 180kg |
Computer-controlled with Windows platform. Features clear hierarchical operation mode with detailed help documents and prompts, making it the most user-friendly testing machine software in the industry.
Utilizes multi-threaded parallel processing technology to display force-displacement, force-time, displacement-time, and stress-strain curves simultaneously in real time. Includes industry-innovative Microsoft Word report format for easy customization.
Established in 2004 and located in Dongguan, Guangdong Province, China, Haida specializes in the production and R&D of material testing equipment. With our own independent research center and four production lines (textile, footwear, leather, mask), we entered the international market in 2006.
