商品の詳細:
|
| Control Mode: | Computer Control | Control System: | Controller with LED |
|---|---|---|---|
| Grip: | Tensile grip, Tear force grip | Printing: | Built-in Printer |
| Screw: | High Precise Ball Screw | Use: | utm tensile testing machine |
| Additional Features: | Automatic Data Recording, Real-time Graph Display | Transducer: | load cell |
| Force Reading: | kgf, Ibf, N, KN, T etc | Test Area Material: | SUS304 stainless steel |
| Dimensions: | 1200mm x 600mm x 1500mm | Horizontal Test Space: | ≤400mm |
| Deformation Measuring: | YYU–10/50 | Max Load Capacity: | 5000N |
| Capacity: | 2kg,50kg (Push-pull gauge optional) | Sensor: | Celtron load cell |
| Unit Switchover: | G, KG, N, LB | Software: | Included |
| Frame Capacity: | 5000kg | ||
| ハイライト: | Load Cell COF Testing Machine,Computer-Controlled COF Testing Machine |
||
| Attribute | Value |
|---|---|
| Control Mode | Computer Control |
| Control System | Controller with LED |
| Grip | Tensile grip, Tear force grip |
| Printing | Built-in Printer |
| Screw | High Precise Ball Screw |
| Use | UTM tensile testing machine |
| Additional Features | Automatic Data Recording, Real-time Graph Display |
| Transducer | Load cell |
| Force Reading | kgf, Ibf, N, KN, T etc |
| Test Area Material | SUS304 stainless steel |
| Dimensions | 1200mm x 600mm x 1500mm |
| Horizontal Test Space | ≤400mm |
| Deformation Measuring | YYU–10/50 |
| Max Load Capacity | 5000N |
| Capacity | 2kg,50kg (Push-pull gauge optional) |
| Sensor | Celtron load cell |
| Unit Switchover | G, KG, N, LB |
| Software | Included |
| Frame Capacity | 5000kg |

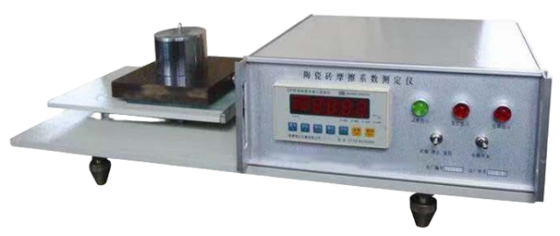

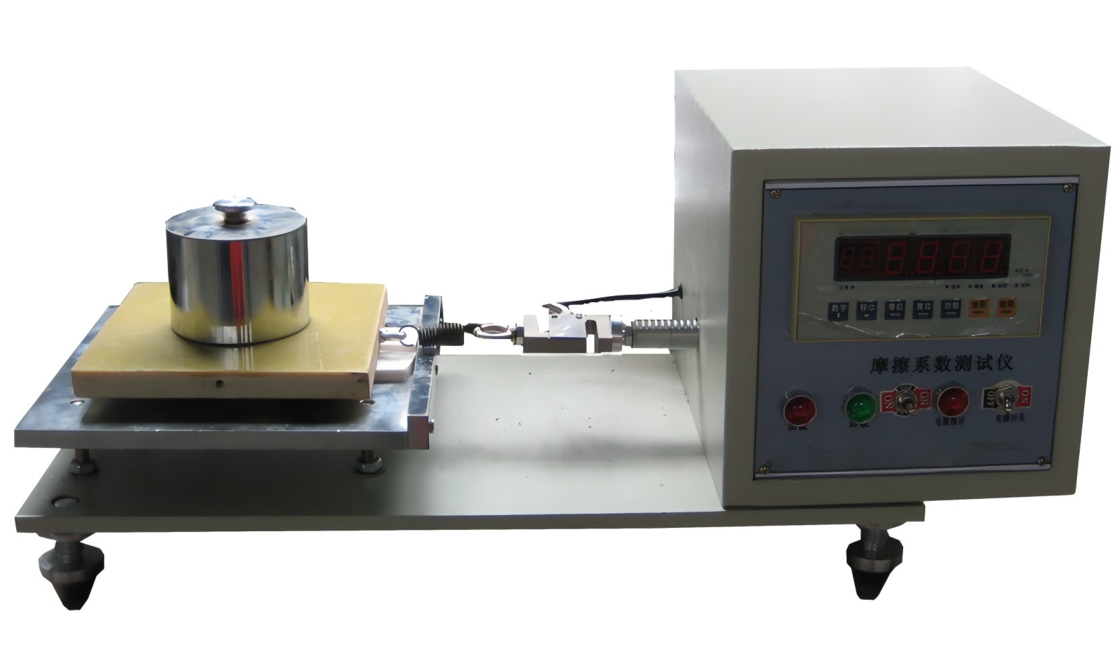

This instrument is designed for measuring the static friction coefficient of ceramic tile surfaces according to Appendix M of GB/T4100-2016 ceramic tile standard, using the slider pull method.
