商品の詳細:
|
| 関数: | 圧縮試験、紙のチューブ圧縮強度テスト、バーストテスター、引張試験、紙検査機器 | 名前: | ペーパーカップチューブ圧縮強度テスター、紙検査機器ペーパーGSMテスター/バースト筋力テスター、紙検査機器 |
|---|---|---|---|
| 画面: | LCD、デジタルディスプレイ | 特徴: | 操作が簡単です |
| 操作方法: | 自動 | 製品タイプ: | テスト機器 |
| 保護装置: | 誘導タイプ保護デバイス | コントロール: | PLCコントロール |
| センシング方法: | 圧力送信機 | 停止: | テストを停止します |
| 力解像度: | 最大試験力Fの1/500000 | 振動モード: | 往復 |
| テストサイクル設定: | 4桁の事前セットカウンター | ||
| ハイライト: | Burst Testing Paper Sheet Former,Paper Compression Sheet Former,Paper Sheet Former |
||
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Name | Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, Paper testing instrument |
| Display | LCD, Digital display |
| Feature | Easy to operate |
| Operation Method | Automatic |
| Product Type | Testing Instruments |
| Protection Device | Induction type protection device |
| Control | PLC control |
| Sensing Method | Pressure Transmitter |
| Stop | Stop test |
| Force Resolution | 1/500000 of the maximum test force fs |
| Vibration Mode | Reciprocating |
| Test Cycles Setting | 4 digits pre-set counter |

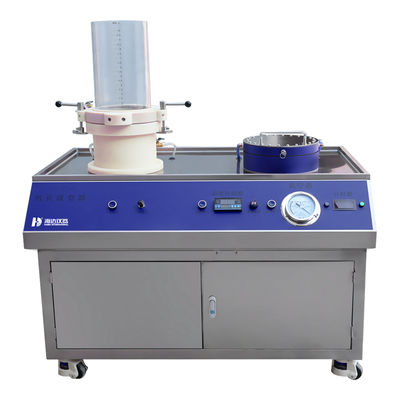

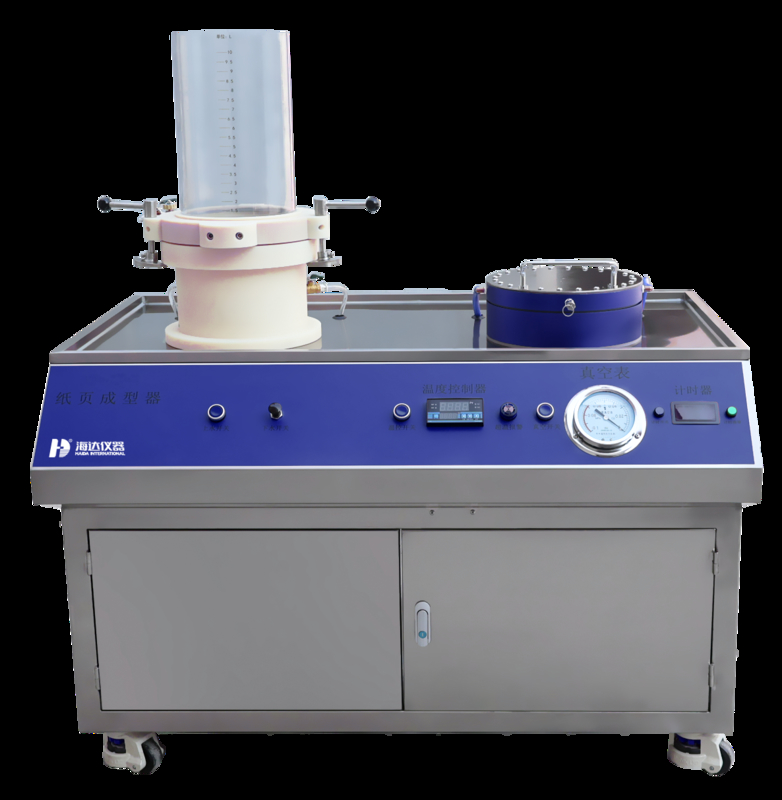

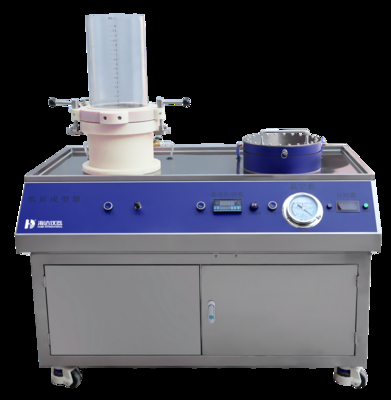

This instrument complies with ISO5269/2 "Pulp - Preparation of Laboratory Paper for Physical Testing" Part II - Rapid Sheet Forming Method. It is used to prepare handsheets for testing physical properties and can also be used for wet sheeting of various fibers including glass fibers, carbon fibers, and nanomaterials. The machine integrates sheet copying, suction filtration, pressing, and drying functions, enabling the complete process from fiber to sample shaping on a single unit.
| Inner diameter of round type pulp storage container | ≥ 200mm |
| Water filtering copper mesh surface to water seal overflow edge | 800+5mm |
| Water filtering copper mesh pressure hole | (80 .100) optional (nano-fiber using the way of the tray network + filter paper) |
| Copper mesh clip material | 304 stainless steel Copper mesh material: paper special phosphorus copper mesh |
| Volt weight | 13kg hand-copied paper sheet pressure of 400kpa (volt roller press can increase the smoothness and uniformity of the paper) |
| Diameter of hand-copied paper sheet | ∮200mm |
| Vacuum pump vacuum degree | -0.092~-0.098MPa |
| Vacuum pressing force | ≈0.1MPa |

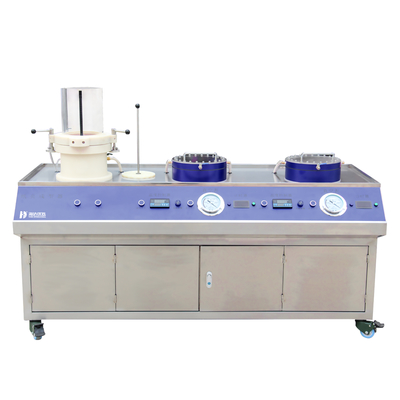

| Drying station | 1 (2 or more stations can be optioned) |
| Drying temperature | ≤140℃ Digital arbitrary setting |
| Drying plate release mode | Natural release (with self-absorbing function automatically absorbing after pressing together) |
| Drying time (quantitative 10-85g/m2) | 3-6 minutes (varies for different fiber types with different moisture content of paper samples) |
| Heating power | 2.5KW |
| Paper thickness range | 10-200g/m2 0.05-3mm (varies for different fiber types) |
| Seal ring material | Silicone |
| Water way | Bottom water. The upper end of the water |
| Drainage method | Pneumatic water release |
