商品の詳細:
|
| 設計基準: | ASTM D646、JIS P8124、QB / T 1671 | 動作方法: | マイクロコンピューター制御 |
|---|---|---|---|
| 最低の読み出し: | 0.1 | 低下の偏差: | ±10mm |
| ロード解像度: | 1/250,000 | テスト基準: | ISO、ASTM、Tappi |
| 落下試験: | 標本の角,辺,面 | 定格の曲げ角: | ±7.5°および±15° |
| 使用法: | 包装テスト | 合板サイズ: | H48in * d48in |
| 圧縮空気: | 6 kg/cm2 | 試験負荷オプション: | 55g、175g、275g |
| ドライブモード: | 電動式 | セルの解像度をロードします: | 1/250,000 |
| ハイライト: | Flexible Material Softness Tester,5024-HD Flexible Material Softness Tester,Softness Tester Packaging Testing |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ± 7.5 ° and ± 15 ° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm2 |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | power-driven |
| Load Cell Resolution | 1/250,000 |

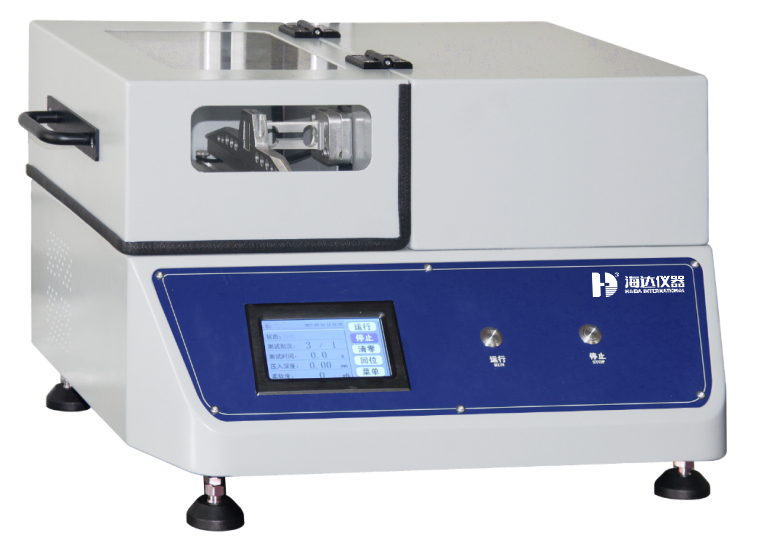

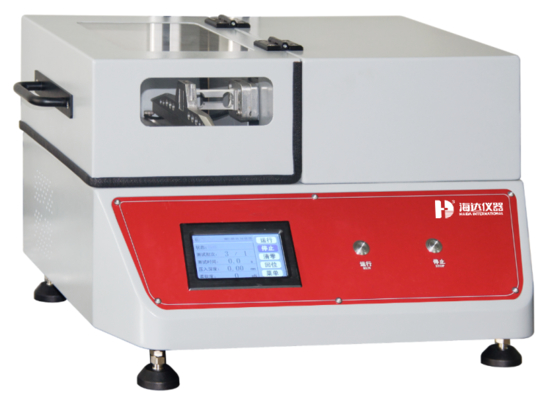

The 5024-HD Flexible Material Softness Tester simulates hand softness perception, designed for testing various grades of toilet papers, fiber fabrics, and other sheet-like flexible materials.
GB/T8942, QB/T1060, ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, EDANA WSP 90.3...
| Measuring range | 0mN～1000mN |
| Accuracy | ±1% |
| LCD display | 4-digit direct reading |
| Print result | 4 significant digits |
| Resolution | 1mN |
| Travel speed | (0.5-3)±0.24mm/s |
| Total stroke | 12±0.5mm |
| Insert depth | 8±0.5mm |
| Displacement accuracy | 0.1mm |
| Power supply voltage | 220V±10% |
| Weight | 20kg |
| Dimensions | 500 x 300 x 300mm (LxWxH) |
