商品の詳細:
|
設計基準: | ASTM D646、JIS P8124、QB / T 1671 | 動作方法: | マイクロコンピューター制御 |
---|---|---|---|
テスト基準: | ISO、ASTM、Tappi | 落下試験: | 標本の角,辺,面 |
使用法: | 包装テスト | 色: | オプション |
負荷範囲: | 0〜60g(指定0〜100g) | 応用: | パッケージテスト |
コントローラ: | PLCコントローラーとタッチスクリーンパネル | 構造: | AC周波数変換モーター(台湾); |
テストエリア: | 10 ± 0.05cm ^ 2 | テスト力の精度: | 表示値の< ± 1% |
テスト基準: | ISO,ASTM,TAPPIなど | 正確さ: | ±1% |
標準: | ASTM D6055 | テストサイクル設定: | 4桁の事前セットカウンター |
起源: | 中国 | サンプルサイズ: | 100(L)×63(W)mm |
解決: | 1/100,000 | 画面: | デジタル |
セルの解像度をロードします: | 1/250,000 | 旅行速度: | 毎秒20〜80 mmで調整できます |

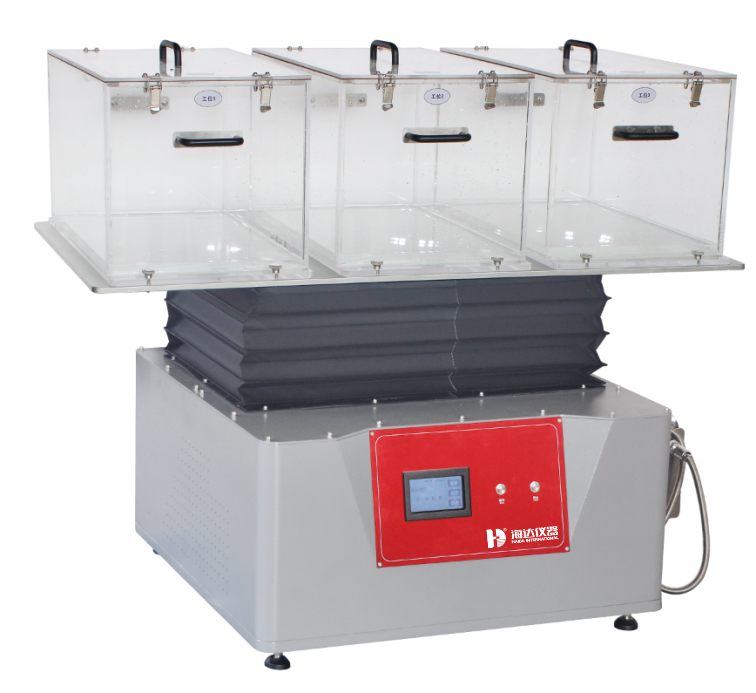

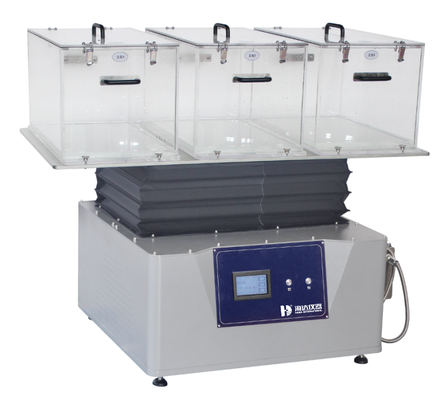

ハイライト: | 5033-HD Wipes Flushability Tester,Wipes Flushability Tester |
Attribute | Value |
---|---|
Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
Operating Method | Microcomputer Control |
Testing Standards | ISO, ASTM, TAPPI |
Drop Test | Corners, edges, faces of sample |
Usage | Packaging Testing |
Color | optional |
Load Range | 0~60g (designated 0~100g) |
Application | Package Testing |
Controller | PLC controller and touch screen panel |
Structure | AC Frequency Conversion Motor (Taiwan) |
Test Area | 10 ± 0.05cm ^ 2 |
Test Force Accuracy | < ±1% of the display value |
Test Standards | ISO, ASTM, TAPPI, etc. |
Accuracy | ±1% |
Standard | ASTM D6055 |
Test Cycles Setting | 4 digits pre-set counter |
Origin | China |
Sample Size | 100(L)×63(W)mm |
Resolution | 1/100,000 |
Display | Digital |
Load Cell Resolution | 1/250,000 |
Travel Speed | adjustable from 20 - 80 mm per second |
Item | Description |
---|---|
Test speed | 1~50RPM (adjustable) |
Measuring time | 0 ~ 9999 minutes and 59 seconds can be set |
Shaking box | 3 stations |
Shaking box internal dimension (L*W*H) | 430*330*300mm |
Mesh screen | φ200mm |
Mesh | φ12.5mm |
Power | 220V, 50HZ, 500W |
Dimensions(L*W*H) | 1100*600*600mm |
Weight | About 80kg |
