商品の詳細:
|
| アプリケーション: | 電池のテスト | 配線方法: | AC 三相四線 |
|---|---|---|---|
| 電源: | AC | キャビネットサイズ: | 600*850*1980 (W*D*H mm) |
| 通信インターフェイス: | RS232/RS485 | 現在の切り替え時間: | 20ms ((-90%~90% F.S) |
| thd: | <5％ | 出力電力: | 24kW |
| 入力電流: | 42.9A/フェーズ | 入れられたAC: | AC 380V ±15%/50/60±5Hz |
| チャネルの数: | 4 | 容量: | 16~24S 100A/200A/300A |
| 現在の精度: | +/- 0.1% | 出力電流: | 30A,60A,100A,150A,300A |
| 充電電流範囲: | 0-10A | 放電電電圧範囲: | 0-100V |
| 電圧決断: | 1mV | 電流範囲を放電します: | 0-10A |
It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.

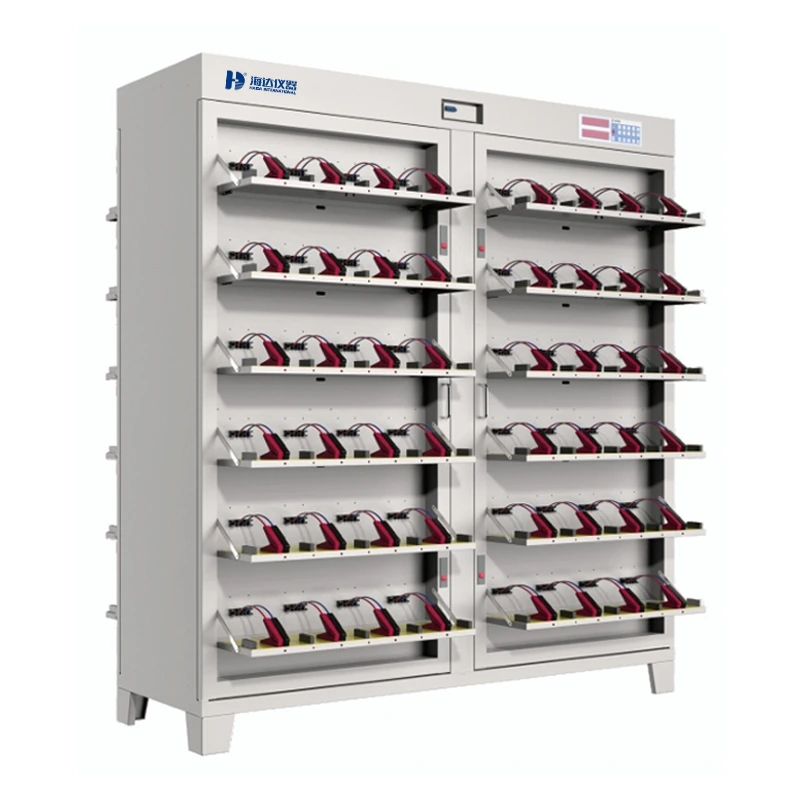

5V 30A Battery Formation& Grading Machine It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.
Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.
| Model | 8005-HD |
| Channels | 96 Channels |
| Voltage Range | DC0~5V |
| Voltage Accuracy | 0.1mV |
| Output Current Range | 100mA ~30A |
| Current Accuracy | 0.1mA |
| Jig Form | Push Down Four Wire Method Fixture |
| Fixture Spacing | 78.5mm |
| Battery Type | Single Cell Power Battery |
| Working Power Supply | Three-Phase Five-Wire Ac380V±10%, 50Hz |
| Ac Current Distortion Rate | ≤5% |
| Power Consumption | ≤13Kw |
| Power Factor | ≥0.99 |
| Charging Efficiency Of Whole Machine | ≥75% |
| Feeder Net Conversion Efficiency | ≥70% |
| Equipment Failure Rate | <1% |
| Work Environment | Temperature -10 ~ 40℃, Relative Humidity ≤80% |
| Heat-Dissipating Method | Natural Air Intake And Upward Exhaust |
| Control mode | Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system |
| Communication mode | 485 serial port communication (baud rate 57600)/TCP communication |
| Process setting | Up to 32 steps and 256 cycles can be set |
| Charge voltage | time Constant current, constant voltage, constant current constant voltage |
| Charge end conditions | Voltage, current, time, capacity, -△V |
| Discharge mode | Constant current, constant power, constant resistance |
| Discharge end conditions | Voltage, time, capacity |
| Time range | 0~3000 minutes/step, time unit is min |
| Time accuracy | <+1%60 |
