商品の詳細:
|
| アプリケーション: | 電池のテスト | 配線方法: | AC 三相四線 |
|---|---|---|---|
| 電源: | AC | キャビネットサイズ: | 600*850*1980 (W*D*H mm) |
| 保護レベル: | IP20 | ノイズ: | ≤65dB |
| 制御モード: | 一定の電圧/定電流（CV/CC） | 電源周波数: | 50±5% Hz |
| 通信インターフェイス: | RS232/RS485/USB/Ethernet | 現在の応答時間: | 10ms ((10%~90% F.S.) |
| 出力電力: | 24kW | 動作温度: | 0-40°C |
| タイプ: | 電池の試験制度 | 現在の切り替え時間: | 20ms ((-90%~90% F.S) |
| データ記録間隔: | 10ms | 定格電力: | 3.5kw |
| 配線方法: | AC 220V |
Power battery modules/packs (such as square aluminum shell LFP/NMC batteries): The capacity division current can reach 100A-500A, testing high voltage and high current performance for electric vehicles and power tools.

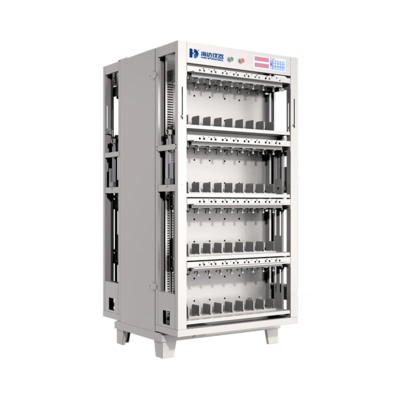

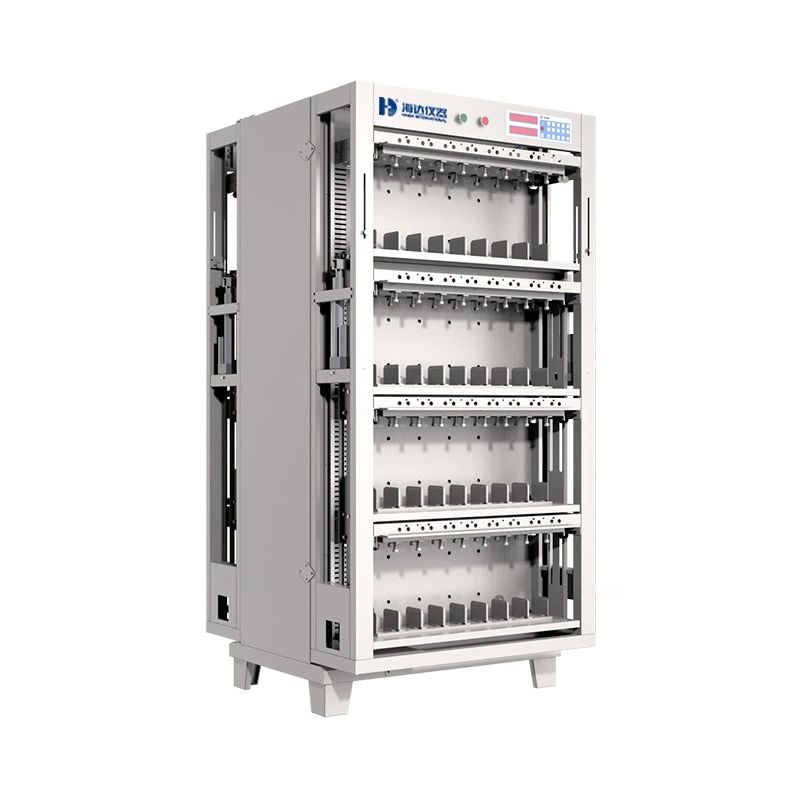

InquiryBattery Formation& Grading Machine 5V 60A For Lithium ion Battery 5V 3A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.
Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.
| Model | 8006-HD |
| Channels | 64 Channels |
| Voltage Range | DC0~5V |
| Voltage Accuracy | 0.1mV |
| Output Current Range | 200mA ~60A |
| Current Accuracy | 0.1mA |
| Jig Form | Push Down Four Wire Method Fixture |
| Fixture Spacing | 81mm |
| Battery Type | Multiple Battery Type |
| Working Power Supply | Three-Phase Five-Wire Ac380V±10%, 50Hz |
| Ac Current Distortion Rate | ≤5% |
| Power Consumption | ≤13Kw |
| Power Factor | ≥0.99 |
| Charging Efficiency Of Whole Machine | ≥75% |
| Feeder Net Conversion Efficiency | ≥70% |
| Equipment Failure Rate | <1% |
| Work Environment | Temperature -10 ~ 40℃, Relative Humidity ≤80% |
| Heat-Dissipating Method | Natural Air Intake And Upward Exhaust |
| Control mode | Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system |
| Communication mode | 485 serial port communication (baud rate 57600)/TCP communication |
| Process setting | Up to 32 steps and 256 cycles can be set |
| Charge voltage | time Constant current, constant voltage, constant current constant voltage |
| Charge end conditions | Voltage, current, time, capacity, -△V |
| Discharge mode | Constant current, constant power, constant resistance |
| Discharge end conditions | Voltage, time, capacity |
| Time range | 0~3000 minutes/step, time unit is min |
| Time accuracy | <+1%60 |
