商品の詳細:
|
| 材料: | 鋼鉄 | オプションの機能: | カスタマイズ可能な負荷容量と寸法 |
|---|---|---|---|
| キーワード: | 家具の試験機 | 力: | 電子 |
| テスト方法: | 動的および静的負荷テスト | 電源: | AC/DC |
| 使用: | 椅子 | タイプ: | テスト機器 |
| ユニットスイッチ: | gf、kgf、N、LBf、W、KN、T | 運転モード: | 可変的な頻度モーターおよびタイミング ベルト |
| 電源: | 電気 | LCDディスプレイ: | はい |
| 調節可能なアームレスト: | はい | ||
| ハイライト: | 5123-HD Wheelchair Rain Test Machine,Steel Wheelchair Rain Test Machine |
||

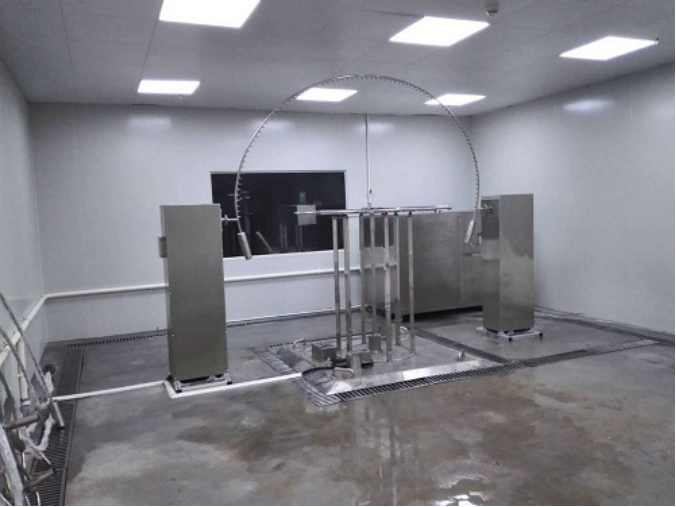

Image For Reference Only
Power supply source: Three-phase,380V±10%,50/60Hz (canbeappointed)
HS Code: 8424899909
| Item | Specification |
|---|---|
| Dimension of waterproof test room (W*D*H) | 5500*4500*4500mm (Waterproof test room provided by buyer) |
| Spray system | Consists of pumps, hydraulic pressure gauge, stationary nozzle stents |
| Oscillating tube | Radius 800mm |
| Oscillating angle | IPX3: spray ±60° from vertical line to each side, total 120° IPX4: spray ±180° from vertical line to each side, total 360° |
| Oscillating speed | IPX3: 2*120° for 4s IPX4: 2*360° for 12s |
| Spray nozzle | Diameter: 0.4mm, removable Ensure the water sprays in a line and without tolerance |
| Distance between two nozzles | 50mm |
| Turntable diameter | 1100mm |
| Turntable rotation speed | 1-3 cycles/min |
| Water flow of each nozzle | 0.07 L/min +5% |
| Test duration | 1~999h999min, adjustable |
| Pressure gauge | 80-150Kpa |
| Distance from nozzle to specimen surface | 200mm |
| Material | Oscillating tube / spray nozzle / sample turntable - Stainless steel |
| Chamber material | Stainless steel, with observation window |
| Safety protection device | Short circuit protection, grounding protection, water shortage protection, audible and visual alarm |
Water spray nozzle
PLC operation interface
