商品の詳細:
|
| 認定: | CE、ISO | 制御方法: | PLC制御システム |
|---|---|---|---|
| テストレート: | 10から30回/分 | 脳卒中: | 762mm （+ 50mm） |
| 原産国: | 中国 | 最大負荷容量: | 500kg |
| 画面: | LCDタッチスクリーン | 寸法: | ワイルドワイルド (188*103*230cm) |
| 電源: | 220V/50Hz | 調節可能な低下の高さ: | 10mmから180mm |
| 機械の寸法: | （W X D X H） 2950*1260*930 MM | 機械のサイズ: | 270*85*80cm |
| ウェイトセンサー: | 200kg | 使用法: | 椅子の耐久性と安全性をテストします |
| 使用: | 椅子 |

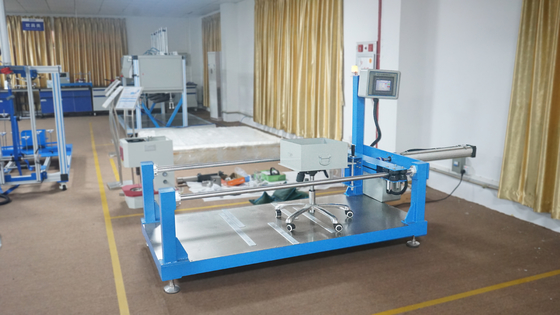

5128-HD Chair Caster Durability Tester
The machine is designed for evaluating the ability of chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth.
Packaging Dimensions: (W*D*H) 2600*1130*1550mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 659kg
HS Code: 9024800000
| Load weight | 122KG(Contains chair construction components) | |
| Test speed | 10±2 times /min | |
| Test stroke | 800mm(Standard required : 762±50mm) | |
| Seat height can be measured | 260～400mm | |
| Display | Touch screen | |
| Control mode | PLC mode | |
| Sample size | Base diameter ≤780mm | |
| Testing cycles | 1-999,999(can be adjusted) | |
| Without obstacle:98000 cycles | With obstacle:2000 cycles | |
| Machine size | 2950mmx1050mmx1600mm(L*W*H) | |
| Power | AC /220V, 50HZ, 100W | |
| Air pressure | ≥6kg/cm² | |
| Items | Touch Screen | 1 piece |
| PLC | 1 piece | |
| cylinder | 1 piece, Diameter: 80mm; route:800mm | |
| Weight box | 1 piece(13kg) | |
| Obstacles | 1 set(5 pieces) | |
| Fixing clamps | 1 pieces |
| Test station | 1 station |
| Control method | Touch screen program control |
| Obstacle installation method | 3 types |
| Obstacle height | 6.4 mm; 12.7 mm; 20.0 mm customizable |
| Wheel diameter | 75-150MM |
| Speed | 1.0m/s ± 0.1 m/s |
| Power supply | 380V |
