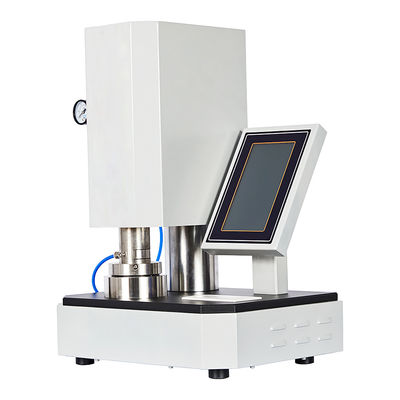

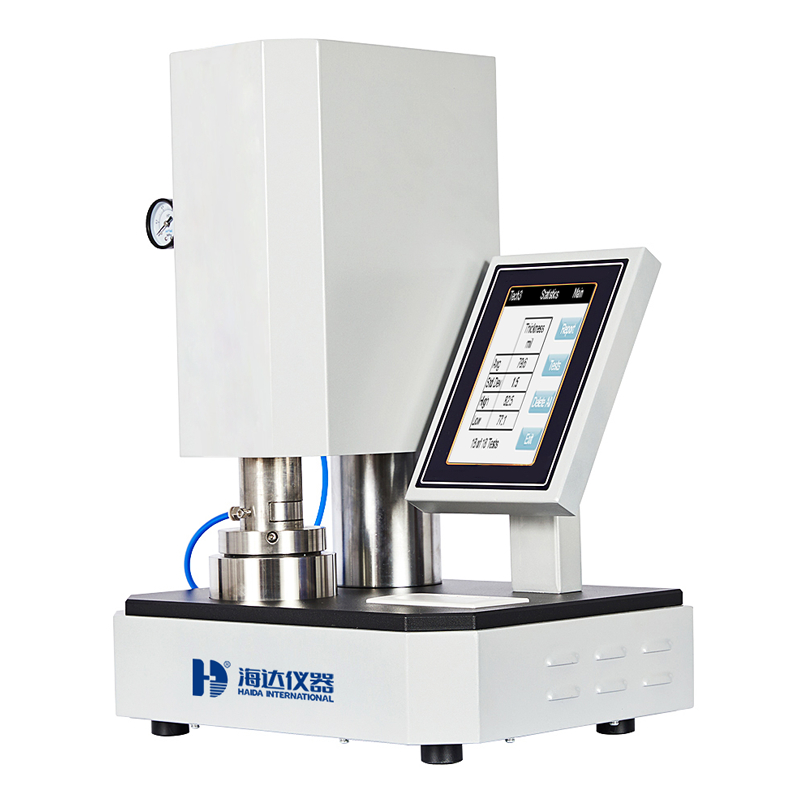

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
DESCRIPTION
Thickness tester is used for thickness determination of film.
DESIGN STANDATD
GB/T 6672,ISO 4593
PRODUCT FEATURES
1. One-click test, easy to operate.
2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.
3. Automatic measurement, statistics, print test results, and has a data saving function
TECHNICAL PARAMETERS
|
Item |
Description |
|
Display |
7-inch touch screen display |
|
Measure range |
(0~2)mm |
|
Resolution |
0.0001mm |
|
Indication error |
±1um |
|
Repeatability |
±1um |
|
Measuring parallelism |
≤0.002mm |
|
Contact area |
50 mm2 |
|
Contact pressure |
film (17.5 ± 1) kPa |
|
Probe descent rate |
0.5~10mm/s(adjustable) |
|
Data storage |
50 times test data |
|
Result Output |
USB flash drive data export |
|
|
Thermal printer |
|
l Communication interface |
USB, WIFI(2.4G) |
|
Dimension |
365x255x440 mm(L*W*H) |
|
Net weight |
27Kg |
