商品の詳細:
|
| 熱対: | 装甲式K型 (NiCr/NiAl) 繊細ワイヤの熱対 0.5mm直径のシールド | タイマー: | 調整範囲:0.01~99.99秒 |
|---|---|---|---|
| 直径: | Ø4.00±0.01mm | 長さ: | 6.00±0.03mm |
| ベベル角度: | 45度 (両端) | 質量 (掘削前): | 0.58g±0.01g |
| 材料: | 高伝導性の電解銅 | 電源: | AC 220V,50Hz,1KVA |
| 表面塗装: | 完全に磨いたもの | ||
| ハイライト: | Needle Flame Test Instrument,Flammability Testing Equipment |
||

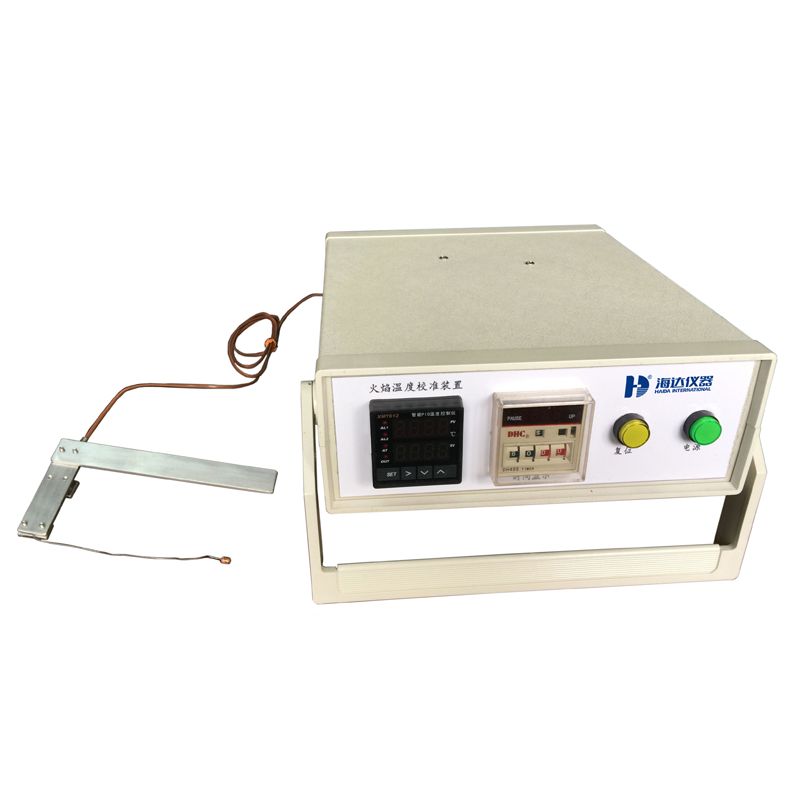

This calibration device is designed in accordance with IEC 60695-11-5 and GB/T 5169.5 standards for measuring the flame temperature of needle flame test instruments. During measurement, the copper block is positioned 6±0.5mm above the needle flame burner. The flame is ignited, and the time required for the copper block temperature to rise from 100°C±5°C to 700°C±3°C must be within 23.5±1.0 seconds. Three measurements are required, with natural cooling of the copper block to below 50°C between each test.
Note: Thermocouples are susceptible to damage above 700°C; thus, the burner must be removed immediately upon reaching this temperature.
IEC 60695-11-5: Fire hazard testing - Part 11-5: Test flames - Needle flame test method - Apparatus, confirmatory arrangement and guidance.
GB/T 5169.5: Test flames - Needle flame test method - Apparatus, confirmatory test arrangement and guidelines.
| Model | 6010-HD |
| Thermocouple | Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath. |
| Timer | Adjustable range: 0.01-99.99 seconds. |
| Copper Block Specifications | |
| Diameter | Ø4.00±0.01mm |
| Length | 6.00±0.03mm |
| Bevel Angle | 45 degrees (both ends) |
| Mass (Pre-drilling) | 0.58g±0.01g |
| Material | High-conductivity electrolytic copper |
| Surface Finish | Fully polished |
After-Service:
Should any issues arise during your testing process, we guarantee:
Timely Response: A formal reply within 48 hours.
Swift Resolution: A proposed solution within 3 working days.
Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
