Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

Name: Certified Environmental Test Chamber -70°C to 150°C 10-98% RH
Brand: Guangdong Haida Equipment Co., Ltd.
SKU: HD-E702
Price: 7,500.00 USD
Availability: InStock

すべての製品

実験室試験機械
(84)

環境試験室
(135)

抗張テスト機械
(221)

振動式シェイカーのテーブルシステム
(27)

炎症性試験装置
(54)

温度湿度室
(42)

加速された老化する部屋
(59)

ip の試験装置
(39)

腐食試験室
(41)

ISTA の包装のテスト
(34)

紙包装の試験装置
(111)

家具の試験装置
(116)

医療機器のテスト
(10)

織物の試験装置
(42)

メカニクステスト機械
(6)

光学測定機械
(17)

バッテリー試験装置
(45)

ゴムプラスチック試験装置
(56)

化学分析機
(19)

電子タバコ検査機
(10)

認証

顧客の検討

はい私達は機械を先週受け取りました。この機械は素晴らしく、アフターセールスのserivesに、でした非常に専門感謝します。

—— ピーターマース

あなたの工場や企業を訪問するために会社の代わりに,技術スタッフは非常にプロフェッショナルで忍耐強く,私は再びあなたと協力することを喜んでると思います.

—— スティーブ Hubbard

オンラインです

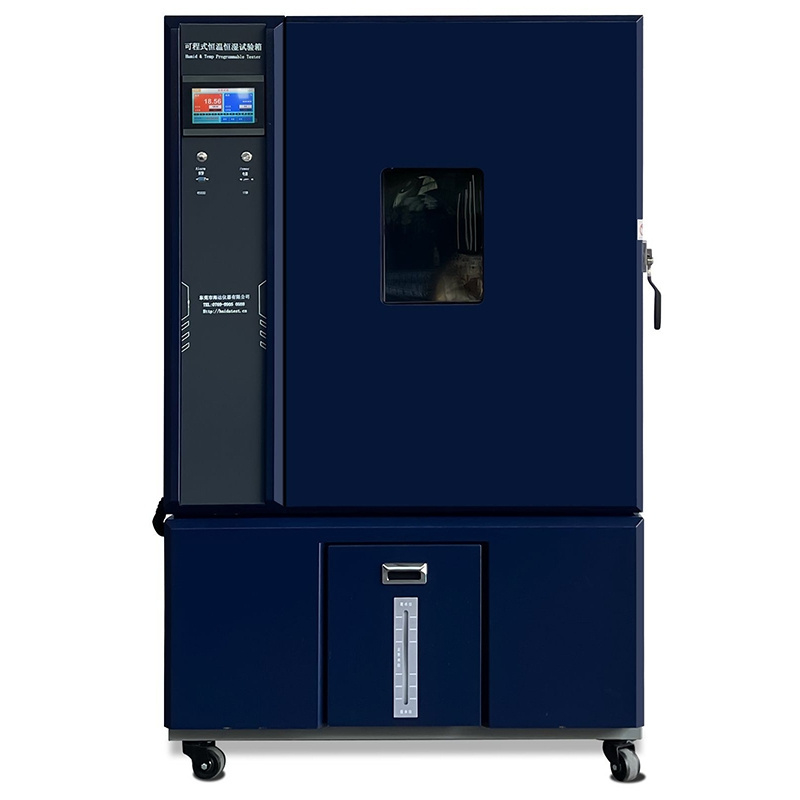

Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

大画像 : Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

商品の詳細:

起源の場所:	中国
ブランド名:	Haida
証明:	CE,,ISO
モデル番号:	HD-E702

お支払配送条件:

最小注文数量:	1
価格:	交渉可能
パッケージの詳細:	強い木の場合
受渡し時間:	順序の後の15日
支払条件:	L/C、T/T、D/A、D/P、ウェスタン・ユニオン、MoneyGram
供給の能力:	75枚/月あたり

連絡先

Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

説明

使用:	恒温恒湿試験機	温度範囲:	-70°C~150°C
湿気のある。範囲:	10~ 98% R.H。	臨時雇用者。及び湿気のある。正確さ:	± 0.3°C;± 2% R.H
臨時雇用者。及び湿気のある。秩序:	± 1°C; ± RH 3%	決議:	0.01°C、0.1%、P.I.D制御
暖房:	-40°C \| 45分内の+100°C	暖房:	20°C~ -20°Cwithin 40min
内部次元（W×D×H）:	100×100×80cm	外部次元（W×D×H）:	145x190x135cm
インテリア素材:	ステンレス鋼の版（SUS304）	外部材料:	ステンレス鋼の版（SUS304）
断熱材:	堅い泡	表示:	LCD
重量:	およそ600のKG	出力:	AC220V±10パーセント50/60Hz
ハイライト:	Professional Environmental Test Chamber , Stainless Steel Exterior Environmental Test Chamber

Certificated Humidity Temperature Lab Test Machines Environmental Testing Chamber

Product Attributes

Attribute	Value
Usage	Constant Temperature and Humidity Testing Machine
Temp. range	-70°C~150°C
Humid. range	10~98% R.H.
Temp. & Humid. accuracy	±0.3°C; ±2% R.H
Temp. & Humid. regularity	±1°C; ±3% RH
Resolution	0.01°C, 0.1%, P.I.D control
Heating up	-40°C ~ +100°C within 45 min
Heating down	20°C~ -20°C within 40min
Interior dimension (W×D×H)	100×100×80cm
Exterior dimension (W×D×H)	145x190x135cm
Interior material	Stainless steel plate (SUS304)
Exterior material	Stainless steel plate (SUS304)
Insulation	Rigid foam
Display	LCD
Weight	Approx. 600 kg
Power	AC220V±10% 50/60Hz

Product Description

Download Product Specifications (PDF)

Environmental Testing Chamber used to test various types of materials for their tolerances of heat, cold, dry, and humidity conditions. It is applied for all types of electronic products, electric appliances, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical, and aerospace industries.

Key Features

HD series chambers have temperature change rates from 1 to 3°C per minute
Controlled humidity from 10% to 95% RH
Available in 6 sizes with interior volumes of 100 to 1000 Liters
Tailor-made chambers available
Advanced models offer temperature change rates from 3 to 15°C
Meet international test performance standards
Global support network with partners in Australia, Dubai, India, Malaysia, Turkey, and Vietnam
Two levels of overheat protection and one level of overcool protection
System controller provides alarm messages with troubleshooting assistance

Standard Features

Stainless #304 steel interior
Painted steel exterior
Foam-insulated door for rigidity and durability
Plastic water tank for easy maintenance
Observation window with frost-free function
High-performance refrigeration system
User-friendly TEMI-880 PLC controller interface

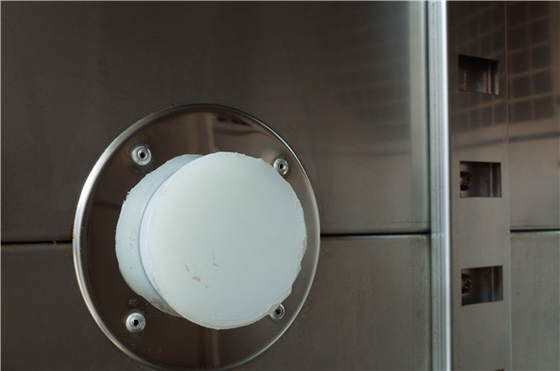

One 100mm cable port (customer specifications available)
One shelf with 10kg loading capacity
Includes 4 casters
Van Type Sirocco, L134, Fan
PID controlled stainless steel humidifier
DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40°C
USB port for data output
Anti-explosive interior lamps
Data logging chart recorders with paperless data storage in PLC

Technical Specifications

Temperature Range: -70°C to 150°C
Humidity Range: 10% to 95% RH
Temperature Fluctuation: ±0.5°C
Temperature Gradient: ±0.5°C to ±0.2°C
Heating Rate: ≥3°C/min average (Advanced model 5-15°C/min)
Cooling Rate: ≥1°C/min average (Advanced model 5-15°C/min)
Humidity Fluctuation: ±1.5% to ±2.0% RH
Humidity Gradient: ±3% RH

Performance Evaluation

For better assurance of performance for your temperature and humidity cycling application, we can provide a guaranteed performance calculation based on your submitted requirements. Please contact our lab consultants for a recommended model with appropriate refrigeration size.

System & Performance Options

Low and Ultra-Low Humidity Extensions
Water-cooling system
Dry Air Purge system for extremely low moisture
Additional shelves with 50kg loading capacity
Custom cable ports with flexible silicone plugs (50, 100, 150mm or customer-specific diameters)
