商品の詳細:
|
| 設計基準: | ASTM D646、JIS P8124、QB / T 1671 | 動作方法: | マイクロコンピューター制御 |
|---|---|---|---|
| 最低の読み出し: | 0.1 | 低下の偏差: | ±10mm |
| ロード解像度: | 1/250,000 | テスト基準: | ISO、ASTM、Tappi |
| 落下試験: | 標本の角,辺,面 | 定格の曲げ角: | ±7.5°および±15° |
| 使用法: | 包装テスト | 合板サイズ: | H48in * d48in |
| 圧縮空気: | 6 kg/cm2 | 試験負荷オプション: | 55g、175g、275g |
| ドライブモード: | 電動式 | セルの解像度をロードします: | 1/250,000 |
| ハイライト: | ASTM D646 Impermeability Tester,Impermeability Tester,5025-HD Automatic Impermeability Tester |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ± 7.5 ° and ± 15 ° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm2 |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | power-driven |
| Load Cell Resolution | 1/250,000 |

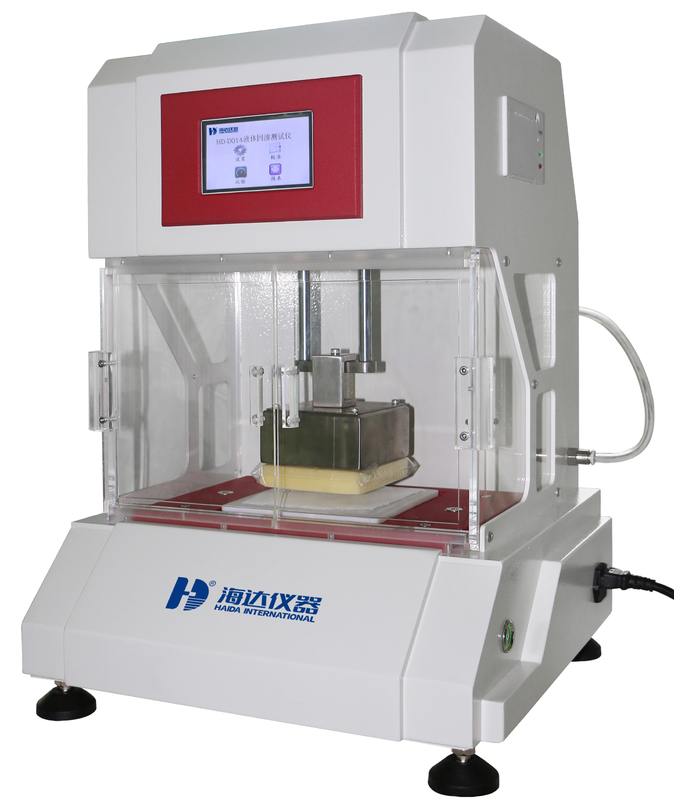

This tester is designed to determine the amount of diaper covering material that resists the rewetting of the liquid that has penetrated.
GB/T 24218.14 ISO 9073-14 WETBACK151.3-02
| Simulated baby load weight and size | 4000g±20g (10x10cm) |
| Test range and accuracy | 300g/0.001g |
| Testing speed | 5cm/(5±1)s |
| Placement and dwell time setting | 1~999s |
| Tray size | 170x170mm |
| Dimensions | Approx: 430 x 410 x 540 mm (LxWxH) |
| Weight | 51kg |
| Power source | 220V, 50Hz, 100W |
