商品の詳細:
|
| 設計基準: | ASTM D646、JIS P8124、QB / T 1671 | 動作方法: | マイクロコンピューター制御 |
|---|---|---|---|
| テスト基準: | ISO、ASTM、Tappi | 落下試験: | 標本の角,辺,面 |
| 使用法: | 包装テスト | 合板サイズ: | H48in * d48in |
| 圧縮空気: | 6 kg/cm2 | 容量: | 10、20、50、100、200kg |
| 圧力範囲: | 600〜1200kpa | 関数: | 紙包装材料の品質と性能をテストします |
| 角度表示: | LCDデジタルディスプレイ | データ表示: | 負荷、変位、速度 |
| リターン速度: | 30mm/分 | スキャンモード: | シングルライン |
| ハイライト: | 5032-HD Permeability Tester,Packaging Materials Permeability Tester,Non-Woven Air Permeability Tester |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
| Operating Method | Microcomputer Control |
| Testing Standards | ISO, ASTM, TAPPI |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm2 |
| Capacity | 10, 20, 50, 100, 200 kg |
| Pressure Range | 600~1200kpa |
| Function | Testing the quality and performance of paper packaging materials |
| Data Display | Load, displacement, speed |
| Return Speed | 30mm/min |

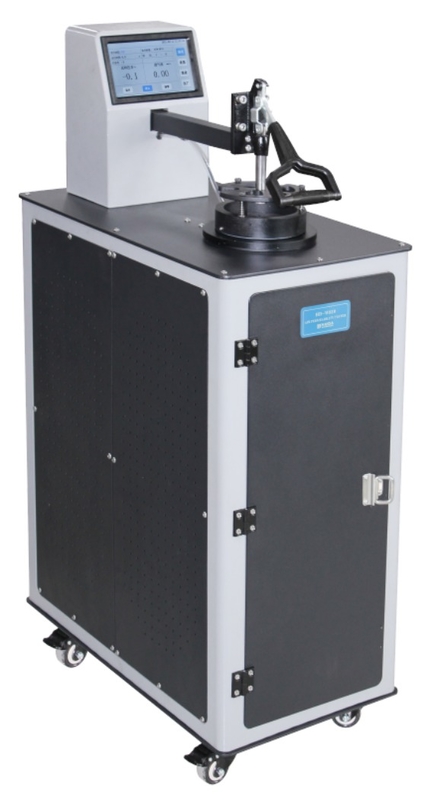

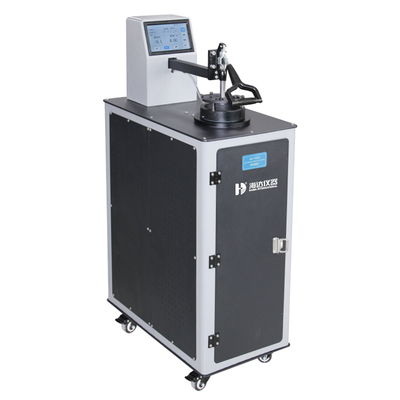

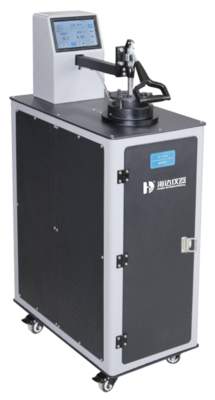

The 5032-HD Non-Woven Air Permeability Tester directly measures air permeability (the speed of air flow passing vertically through a sample under specific conditions) of various materials including woven and knitted fabrics, industrial textiles, non-wovens, artificial leather, felts, and paper.
GB/T5453, GB/T13764, ISO 9237, EN ISO 7231, AFNOR G07, ASTM D737, BS5636, DIN 53887, EDANA 140.1, JIS L1096, TAPPIT251
| Technical Index | 5032-HD |
|---|---|
| Air permeability measuring range | 0.5~14000mm/s(20cm2),0.1mm/s |
| Units | mm/s, cm3/cm2/s, L/dm2/min, m3/m2/min, m3/m2/h, d m3/s, cfm |
| Sample pressure range | 0~2,400 Pa |
| Accuracy | ≤±1% |
| Test areas | 20 cm² |
| Sample thickness | ≤10mm |
| Accessories | Test Heads: 01 Nos. 20cm²; Calibration Check Plate: 01 Nos. ΦO=7.8 |
| Dimensions | 360×620×1070mm (L×W×H) |
| Power supply | AC220V,50Hz, 1500W |
| Weight | 65kg |
