商品の詳細:
|
| 解決: | 1/10,000 | 正確さ: | ±1% |
|---|---|---|---|
| テストエリア素材: | SUS304ステンレス鋼 | 伸長精度: | 0.001mm |
| 力: | 1∮、AC220V、50Hz | 重さ: | Approx.36kg |
| センサー: | セルトロンロードセル | 容量: | 2kg、50kg（プッシュプルゲージオプション） |
| ハイライト: | Universal tensile test machine,Force pull testing machine,Electronic Hounsfield testing equipment |
||

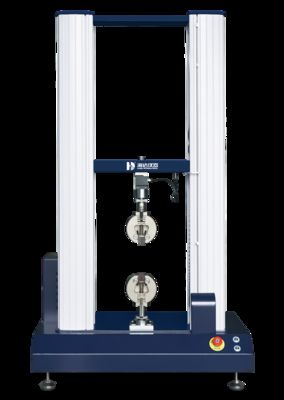

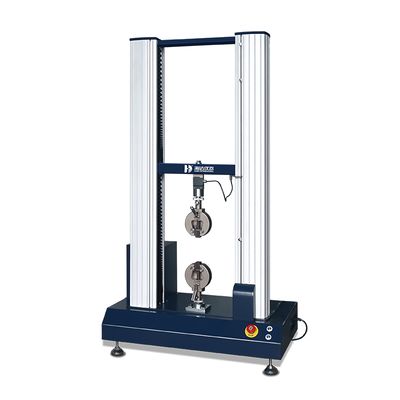

Electronic Hounsfield Use Universal Testing Machines Force Pull Testing Machine
Universal Test Machine.pdf
GENERL SPECIFICATIONS
Estimated Packaging Dimensions: (W*D*H) 910*820*2210mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Estimated Gross Weight: 420kg
STANDARD FEATURES
| Item | Description |
| Frame capacity | 5000kg |
| Load cell brand |
Germany brand load cell for high accuracy |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1100mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop |
APPLICATIONS
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
