商品の詳細:
|
| MOQ: | 薬物およびおもちゃ用の双頭針金属探知機 | 特徴: | 操作が簡単 |
|---|---|---|---|
| 重さ: | 175kg | 幅の検出: | 600mm |
| 警報方法: | ブザー | 輸送速度:: | 24m/分(50Hz)、32m/分(60Hz) |
| price: | cheap | 定格出力: | 100W |
| コンベアの長さ: | 1350mm | 感度調整：: | 1~10レベル |

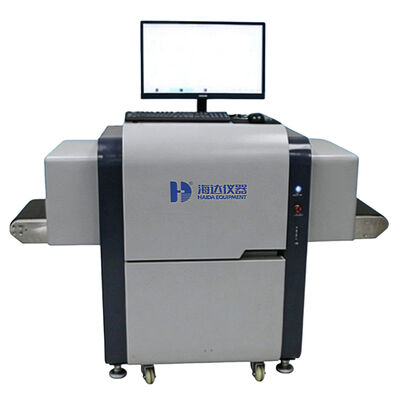

| ハイライト: | 600mm detecting width X-ray Detection Machine,24m/min conveying speed Needle Metal Detector,0.8mm detection accuracy Industrial Inspection Equipment |
||
| Parameter | Specification |
|---|---|
| Channel Opening | 500mm (width) × 250mm (height) |
| Conveyor Belt Height | 700mm from ground |
| Detection Accuracy | 0.8mm (for iron) |
| Maximum Conveyor Belt Load | 25 kg |
| Leakage Dose | 0.502µGy/h (5 cm from casing), compliant with health and safety regulations |
| Operating Voltage | AC220V, 50±3Hz |
| Operating Environment | Temperature: 0℃~60℃, Humidity: 20%~90% (non-condensing) |
| Equipment Noise | ≤55dB |
| Detection Capability | Detects metal spheres with diameter of 0.8mm, broken needle tips, and foreign objects/impurities |
| High-Speed Detection | Standard setting: 12 meters/min (600 items per hour), speed adjustable |
| Dimensions (L×W×H) | 2200mm × 1060mm × 1200mm |
