商品の詳細:
|
| 部屋の容量: | ≥0.5立方メートル,ガラスの観測ドアを装備 | 部屋の照明: | 20ルックス未満 |
|---|---|---|---|
| 光線によってサンプルに施された力: | 0.95 ± 0.10N,挿入深度制限が7.0mm ± 0.5mm | 総寸法 (L×W×H): | 約1015×650×1300mm (ローバーの高さを含む) |
| 電源: | AC 220V,50Hz,1KVA | ||
| ハイライト: | Button-Controlled Glow Wire Test Machine,Glow Wire Test Machine |
||
In fault or overload conditions, components or parts may reach excessive temperatures or ignite nearby components.
The glow-wire test simulates the thermal stress caused by a glowing element, overloaded resistor, or similar heat or ignition source over a short period. It is used to assess the fire hazard risk using simulation techniques.
This test applies to electrical and electronic products, components, household appliance parts made of plastics, and non-metallic insulation materials, such as switch casings and relay sockets.

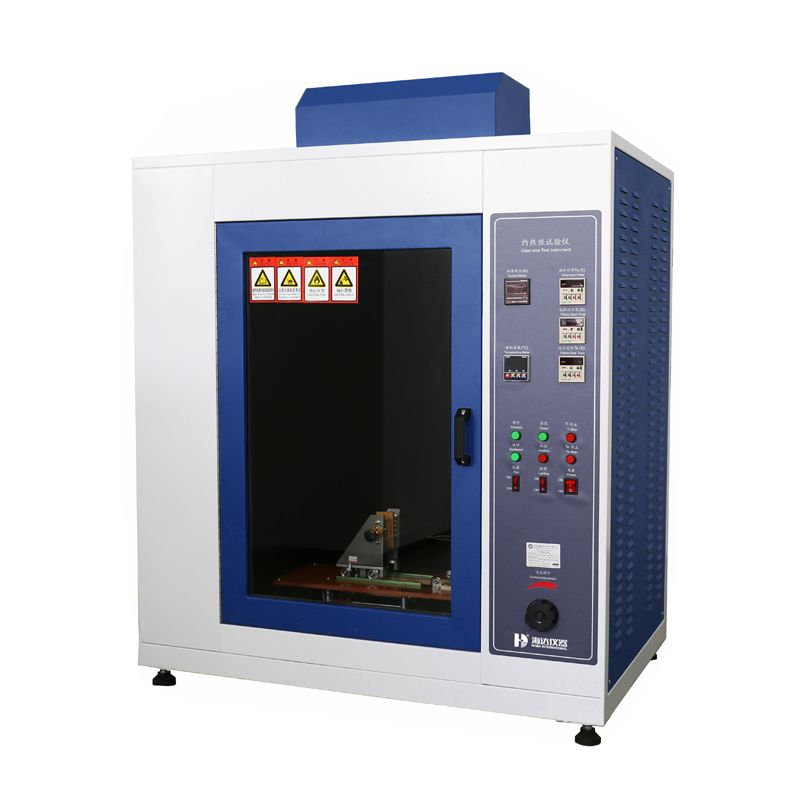

| Model | 6001-HD |
| Chamber Volume | ≥0.5 cubic meters, equipped with a glass observation door |
| Chamber Illumination | Less than 20 LUX |
| Glow-Wire Temperature | Adjustable from ambient temperature +10ºC to 1000ºC, measured using a Ø1mm nickel-chromium (K-type) imported thermocouple |
| Force Applied by Glow-Wire on Sample | 0.95 ± 0.10N, with an insertion depth limit of 7.0mm ± 0.5mm |
| Glow-Wire Material | Nickel/chromium alloy (>77% Ni / 20±1% Cr), with a pre-bending diameter of 4.0 ± 0.07mm; other dimensions conform to standard tolerance requirements |
| Timer | Adjustable from 0 to 99 minutes 99 seconds, with a resolution of 0.01 seconds. Records ignition time (Ta), flame persistence time (Ti), and flame extinction time (Te) |
| Wooden Board | White pine board, thickness >10mm, positioned 200±5mm below the sample's contact point with the glow-wire. |
| Product Features | Fully automated control system: Once started, the sample-holding carriage automatically moves the sample to the glow-wire and returns it after the preset glow duration. |
| Black background interior for easy observation. | |
| Equipped with an exhaust system and lighting. | |
| Digital display for time and temperature, ensuring convenient observation and recording. | |
| verall Dimensions (L×W×H) | Approx. 1015×650×1300mm (including caster height) |
| Power Supply | AC 220V,50Hz,1KVA |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:
Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
