商品の詳細:
|
| バーナー角度: | 調節可能: 20°,45°,90° (垂直) | 燃料ガス: | 工業用メタン (≥98%純度,ユーザーから提供) |
|---|---|---|---|
| 炎の高さ: | 調節可能: 20mm-175mm (標準対応) | 尺寸 (L×W×H): | 126×70×130cm (ローラーを含む) |
| 電源: | AC 220V、50Hz | ||
| ハイライト: | construction material testing equipment,Touch Screen Horizontal Burning Test Machine,Industrial Test Equipment burning test machine |
||

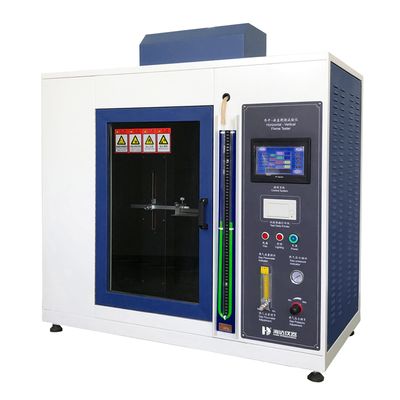

Horizontal & Vertical Burning Test Apparatus apparatus is designed to evaluate the burning characteristics of plastic materials in accordance with UL 94 (Flammability of Plastic Materials for Parts in Devices and Appliances). It conducts horizontal and vertical flammability tests on plastic components, featuring: Motorized operation for safety and ease of use. Gas flow meter for precise flame adjustment.
UL 94, GB/T 2408, IEC 60695-11-4, GB/T 5169.22, IEC 60695-11-3, GB/T 5169.15, IEC 60695-11-10, GB/T 5169.16, UL 60065, GB/T 5169.17-2017, IEC 60695-11-20
| Model | 6017-HD |
| Burner Angle | Adjustable: 20°, 45°, 90° (vertical) |
| Burner Specifications | Nozzle inner diameter: Ø9.5±0.3mm; Effective length: 100±10mm; Equipped with air adjustment holes. |
| Fuel Gas | Industrial-grade methane (≥98% purity, user-provided) |
| Flame Height | Adjustable: 20mm-175mm (standard-compliant) |
| Key Features | Integrated lighting, exhaust system, gas flow/pressure regulators, pressure gauge, U-tube manometer, and sample fixture. |
| Dimensions (L×W×H) | 126×70×130cm (including casters) |
| Power Supply | AC 220V, 50Hz |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
