商品の詳細:
|
| 部屋の容量: | ≥0.5m3 グラス観測ドア | ドロップレット インターバル: | 調節可能: 0~99.99秒 |
|---|---|---|---|
| フィルター紙: | 標準寸法 厚さ:0.15~0.17mm | 電源: | AC 220V,50Hz,1KVA |
| ハイライト: | High Voltage Tracking Resistance Test Machine,flammability test Machine For Fabric,flammability tester For fabric |
||

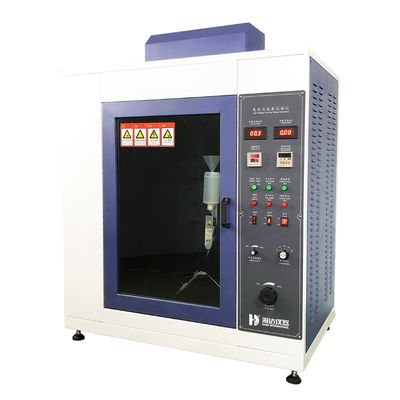

The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz-62Hz) to assess the performance of electrical insulation materials.
| Model | 6008-HD |
| Chamber Volume | ≥0.5 m³, with a glass observation door. |
| Electrical Load | Adjustable voltage range: 0-6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop). |
| Droplet Interval | Adjustable: 0-99.99 seconds. |
| Filter Paper | Standard dimensions; thickness: 0.15-0.17mm. |
| Electrodes | Thickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions). |
| Droplet System | Adjustable height; contaminant flow rate: 0.075-0.9 mL/min; pre-settable test duration. |
| Key Features | Stainless steel construction for all components (electrodes, fasteners, screws, washers, nuts). |
| Power Supply | AC 220V, 50Hz. |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:
Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
