商品の詳細:
|
| 熱対: | 装甲式K型 (NiCr/NiAl) 繊細ワイヤの熱対 0.5mm直径のシールド | タイマー: | 調整範囲:0.01~99.99秒 |
|---|---|---|---|
| 直径: | Ø9.00±0.01mm | 長さ: | 19.14±0.02mm |
| ベベル角度: | 45±0.5° | 質量 (掘削前): | 10.00g±0.05g |
| 材料: | 高伝導性の電解銅 | 表面塗装: | 完全に磨いたもの |
| ハイライト: | GB/T 5169.15 Flammability Testing Equipment,ASTM D5207-03 Flammability Testing Equipment,IEC 60695-11-3 Flammability Testing Equipment |
||

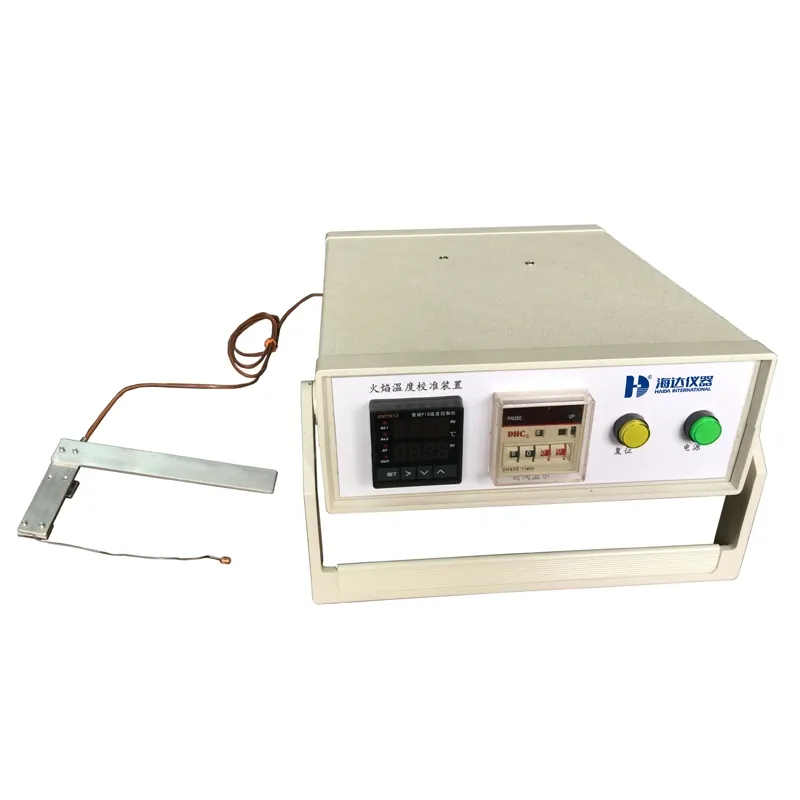

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.
Position the copper block 55±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.
Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.
ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials. GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products - Part 15: Test Flames - 500W Flame Apparatus and Confirmational Test Methods.
IEC 60695-11-3: Fire hazard testing for electric and electronic products - Part 11-3: Test flames - 500W flames - Apparatus and confirmational test methods.
| Model | 6015-HD |
| Thermocouple | Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath. |
| Timer | Adjustable range: 0.01-99.99 seconds |
| Copper Block Specifications | |
| Diameter | Ø9.00±0.01mm |
| Length | 19.14±0.02mm |
| Bevel Angle | 45±0.5° |
| Mass (Pre-drilling) | 10.00g±0.05g |
| Material | High-conductivity electrolytic copper |
| Surface Finish | Fully polished |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:
Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
