商品の詳細:
|
| オゾンによって作り出されるモード: | オゾン発電機か紫外線吸収方法 | 試験モードA: | 室温 |
|---|---|---|---|
| 表示: | デジタル | Test Speed: | 調整可能 |
| 製品: | ゴム製試験装置 | 制御方法: | コンピュータによる自動テスト |
| 温度は鳴った: | 通常温度~200°C | 電気加熱力: | AC220V±10%50HzAC220V±10%50Hz |
| 試験基準: | ASTM,ISO,GB,JISなど | ||
| ハイライト: | Haidathermal Conductivity Tester,surface temperature Thermal Conductivity Tester,Hot Disk Thermal Conductivity Tester |
||

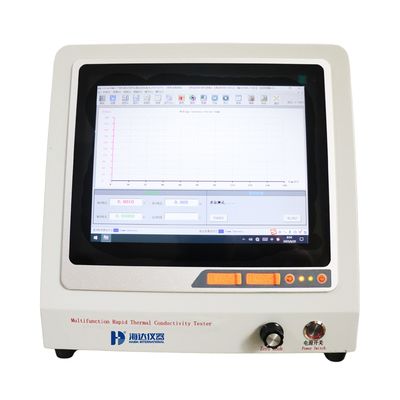

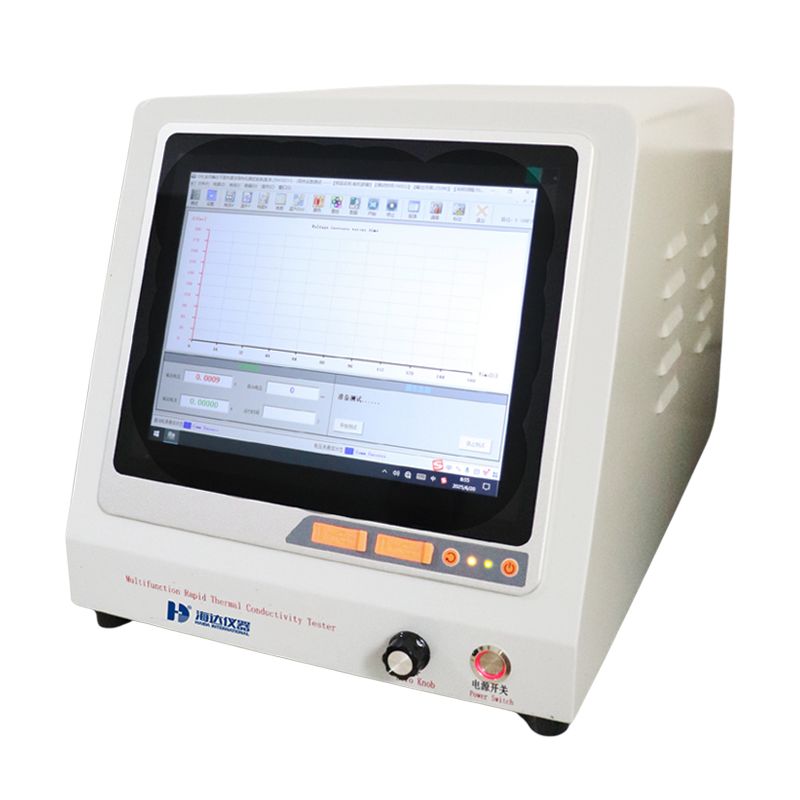

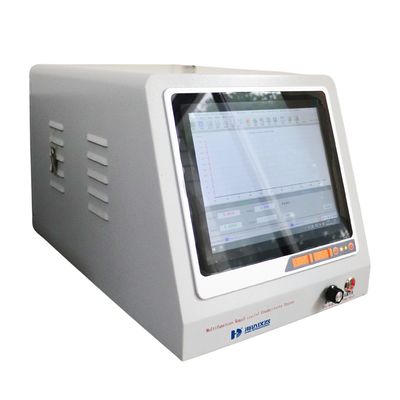

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.
Technical Paramet
|
Item
|
Parameters
|
|
Thermal conductivity range
|
0.001~500 w/(m.k), resolution 0.0001w/(m.k)
|
|
Thermal diffusion coefficient range
|
0.1~100m2/s
|
|
Thermal storage coefficient range
|
0.1~30w/(m2.k)
|
|
Specific heat capacity range
|
0.1~5kJ/(kg.ºC)
|
|
Thermal resistance range
|
0.5~0.000005mm2.k/w
|
|
Temperature measuring accuracy
|
≤0.0001ºC
|
|
Measurement relative error
|
≤3%
|
|
Repeatability error
|
≤3%
|
|
Measuring time
|
1~120 seconds
|
|
Sample test temperature range
|
Room temperature
(Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
|
Probe
|
Φ15mm
|
|
Various sample tests
|
a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample
surface is required, and a special sample clamping device is provided. b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing. |
|
Control mode
|
Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
|
|
Machine dimension
|
(L*W*H)380*40*450mm
|
|
Machine weight
|
Approx. 20KG
|
|
Power
|
AC 220V±10%, 50/60 Hz, 500W
|
About us
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
