商品の詳細:
|

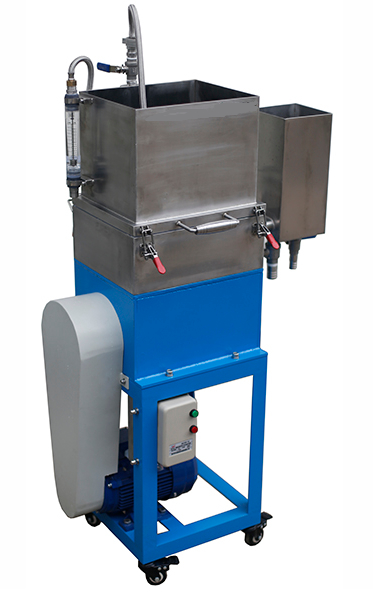

This machine is a laboratory-specific pulp screen (Somerville type equipment), which separates the large sticky matter, plastic, sediment, iron filings and other impurities in the pulp through the up and down vibration of the screen plate. Check and quantify.
TAPPI 275
| Item | Description |
|---|---|
| Sieve plate size | 307mm×268mm |
| Screen slit | length 45 mm, width 0.15 mm |
| Specification of sieve plate sieve slit | 0.15mm |
| Rubber membrane and actuation: Amplitude | 3.2 ± 0.1mm eccentric actuation at 690-700 rpm |
| Water flow rate control | 8.6 L/min. Water pressure: 1.23 Kg/cm2. |
| Dimensions | 720*410*1150mm |
| Other optional sieve plate sieve slot specifications | 0.15mm, 0.2mm, 0.3mm, 0.35mm, 0.4mm. |
