商品の詳細:
|
| 影響の角度: | 90度 | 時間決断: | 1秒 |
|---|---|---|---|
| 設計基準: | ￠ 84mm×45mm | 測定精度: | ±3％ |
| 試験角度: | 20°、30°、40° | 材料の音速: | 1000-9999m/s |
| ローラー速度: | 40±1R。 p。 m | 注射能力: | 40*65cm3 |
| タイミング範囲: | 3min (任意に設定できます) | 作業サイズ: | 直径 160*44mm 中央の高さ 214mm |
| 一定した温度: | 50°C±0.5°Cと100°C±0.5°C | 剥離角: | 90° |
| 寸法: | 550×440×690 mm | 外の次元: | （L×w×h）500×200×300 mm |
| タイプ: | シングルハンマーハンド |
***Picture for reference

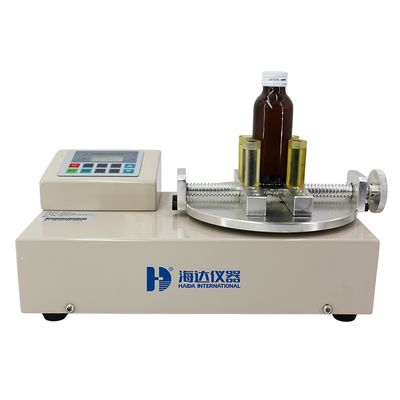

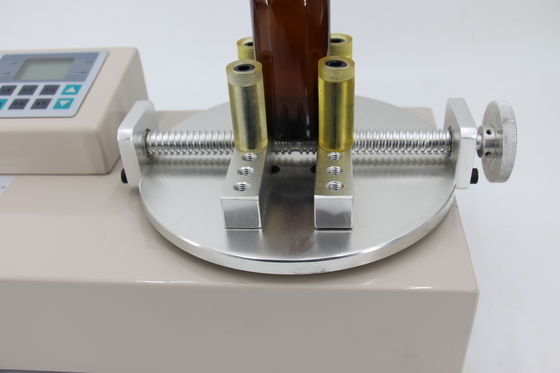

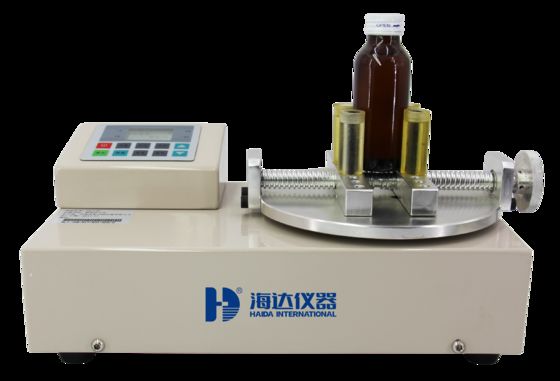

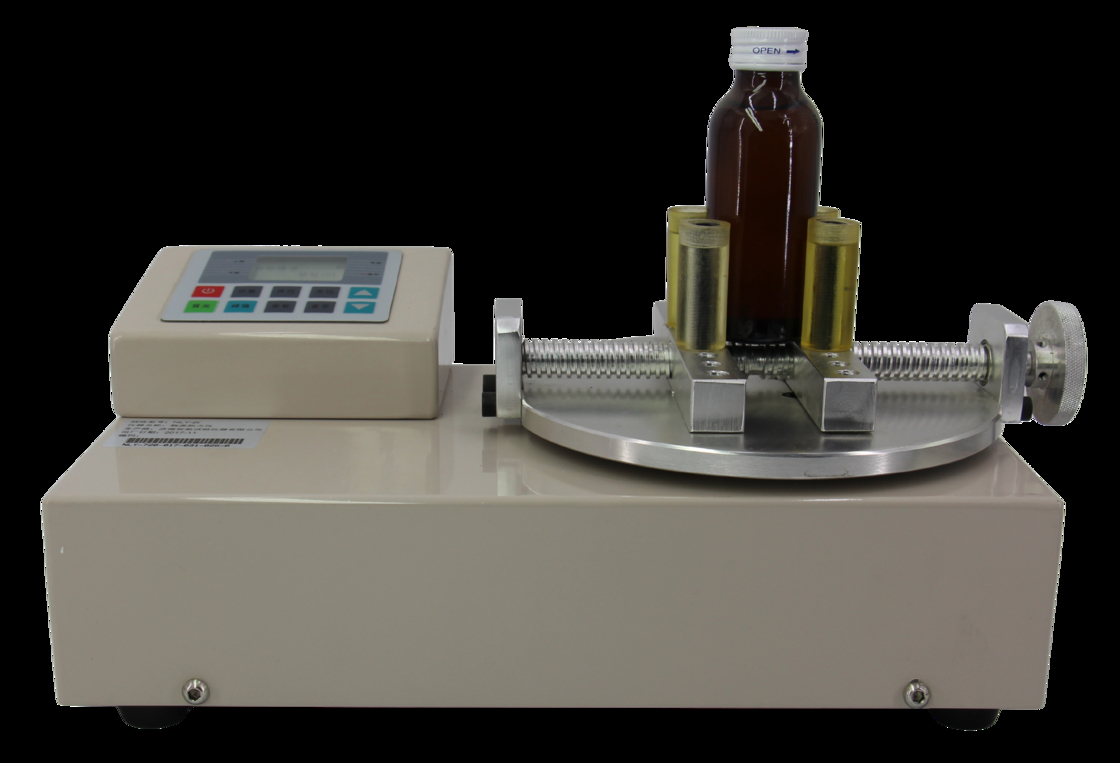

Bottle Capping Torque Tester is suitable for the pharmaceutical, food and beverage, filling industry, etc., such as bottle packaging products, hose packaging products, cap closure of the nozzle packaging products, accurate torque testing of opening.
| Item | Description |
|---|---|
| Measuring range | 0～99ib.in |
| Resolution | 0.001 Nm |
| Accuracy | ±0.5% |
| Display mode | Touch screen ; LCD display |
| Unit | N.m; kg.cm; ib.in; N.cm |
| Clamping range | Ф25mm～Ф170mm (Diameter) |
| Power supply | 5V rechargeable battery AC220V 50HZ power adapter |
| Data output method | Micro printer, optional PC output |
| Save quantity | 1～99 |
| Machine size | 330*200*200mm |
| Weight | 15 KG |
| Design standard | GB/T 17876,ASTM D 2063, ASTM D 3198, ASTM D 3474 |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
