5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

大画像 : 5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

商品の詳細:

起源の場所:	中国
ブランド名:	Haida
証明:	CE,,ISO
モデル番号:	5083-HD

お支払配送条件:

最小注文数量:	1
価格:	交渉可能
パッケージの詳細:	各セットは樹脂繊維とPPフィルムで保護され、その後、オペレーションマンと一緒に強力な木製のケースに入れます
受渡し時間:	注文が確認されてから20日後
支払条件:	L/C、T/T、D/A、D/P、Western Union、MoneyGram
供給の能力:	1か月あたり300セット

連絡先

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

説明

測定角:	20°/60°/85°	切断速度:	100~3000mm/min 調節可能
最大処理幅:	300mm	ねじ打撃:	90 mm
タイミングの正確性:	0.1秒	最大注射量:	40g
シリンダー:	直径9.5504±0.0076mm	重さ:	特定のモデルによって異なります
パイプの直径範囲:	Φ2-Φ2000mm	剥離角:	90°
タイミング範囲:	0〜100時	注射能力:	40*65cm3
ハイライト:	5083-HD leak test machine , leak test machine 300mm width , plastic test equipment with injection

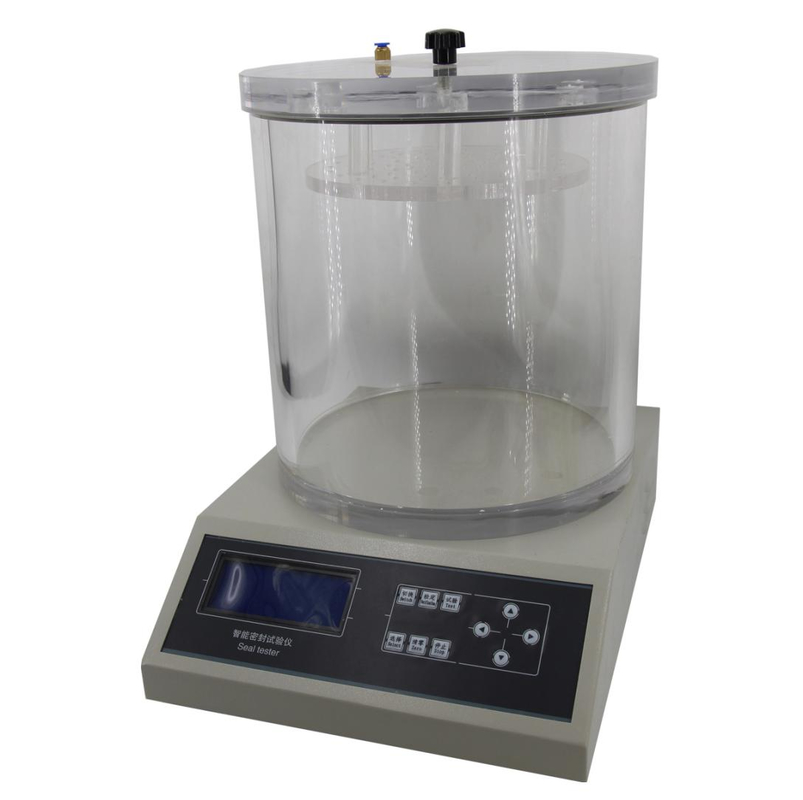

5083-HD Leak Test Machine (Vacuum Tester)

Product Description

This leak test machine is suitable for sealing tests of bottles, pipes, cans, and boxes in various industries including food, pharmaceutical, medical equipment, daily chemical, automotive, electronic components, and stationery. It can also evaluate sealing performance after impact tests and pressure resistance tests.

Design Standard

ASTM D3078, GB/T 15171

Test Principle

By evacuating the vacuum chamber, the sample immersed in water generates a pressure difference between inside and outside, allowing observation of gas escape to determine sealing performance
Through vacuum chamber evacuation, the sample develops internal/external pressure difference, enabling observation of sample expansion and shape recovery after vacuum release to assess sealing capability

Technical Parameters

Item	Description
Vacuum Density	-90-0kPa
Accuracy	± 0.1kPa
Pressure speed	1m/s
Available Vacuum room Size	Standard: Φ270mm*210mm(H) (other sizes available)
Air pressure	0.7MPa (user-provided)
Gas Source interface	Φ6PU pipe
Control ways	Microcomputer control, automatic test
Display ways	LCD display
Power	AC 220V 50Hz (AC110V 50HZ)
Standard Configuration	Main unit, experimental sealed barrels, power cords
Net Weight	16kg
Dimensions	(LWH) 420320520mm

About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. Since 2006, our testing equipment has been in production and successfully entered international markets.

Why Choose Haida?

Design & Production: Solution consultation for each order, recommendation of most cost-effective machines, and R&D for special-designed models
Shipping & Delivery: One-stop service from production to door delivery, including installation, training, and technical support
Warranty: 1 year warranty with lifetime technology support
After-Sale Service: 2-hour response time with video inspection and on-site service options

Frequently Asked Questions

Q: How about your warranty?

A: Our standard warranty is one year. During this period, we provide technical support and replacement parts as needed. For complex issues, our engineers may visit your location for service.

Q: What is the order process?

A: Our process includes: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.

Q: Can we visit your factory before ordering?

A: Yes, we warmly welcome visits and can assist with hotel arrangements and airport transfers.

Q: Do you accept customization service?

A: Absolutely. We offer both standard machines and customized solutions tailored to your specific requirements.
