商品の詳細:
|
| 注入の時間: | 0-9999s [調整可能] | トルクの決断: | 0.001NM |
|---|---|---|---|
| 保証: | 1年 | 動作方法: | 電気制御 |
| 火力: | 4kw | 充電時間: | 0~999 プログラム可能 |
| テスト範囲: | 0.005-300W/(m*K) | 変位精度: | 0.01mm |
| プランジャー: | 直径9.4742±0.0076mm | 使用法: | テスト |
| 試験モードA: | 室温 | ねじ速度: | 0~150回転/m |
| 温度範囲: | 通常の温度 - 30°Cor -50°C | 標本保持者: | 内溝幅 12mm |
| 外部サイズ: | 900*500*800 (W*D*H) |

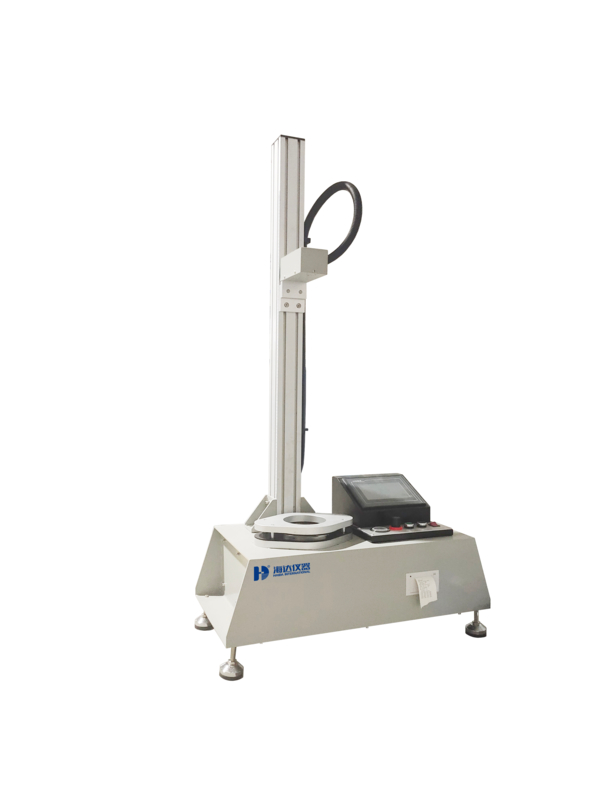

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.
Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm
Estimated Gross Weight: 130kg
Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)
| Test Item | Specification |
|---|---|
| Testing sample mass | Method A: 50-2000g; Method B: 300-2000g |
| Testing accuracy | 0.1g (0.1J) |
| Testing method | Method A & Method B (Option) |
| Specimen size | ＞150mm×150mm |
| Diameter of impacting head | Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm |
| Diameter of dart shaft | Ф6.5±0.1mm |
| Inner diameter of specimen fixture | 125±2 mm |
| Impacting height | Method A : 0-660mm, Method B: 0-1520mm |
| Weights | Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2 Method B: 15g*2, 45g*8, 90g*8, 300g*2 |
| Power | Single-phase 220V, 60Hz |
| Estimated Weight | 100kg |
| Specimen Fixture | Pneumatic |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
