商品の詳細:
|
| ホスト次元: | 130mm*70mm*26mm | 最大摩擦荷重: | 1kg |
|---|---|---|---|
| 衝撃エネルギー: | 0.5 J,0.2 J | ローラーホイールの長さ: | 460mm |
| 測定精度: | 1>10nA: ±3%, 1<10nA: ±5%, 1<1nA: ±10% | 制御方法: | 7インチのタッチスクリーン |
| 衝撃速度: | 3.8 m/s | 圧力範囲: | 0-10MPA |
| パンチングストローク: | 25mm | 温度範囲: | 室温まで300°C |
| 観察者: | CIE 10° 標準観測者 | 湿度の動作: | 20%RH~90%RH |
| 測定間隔: | 0.5秒 | 電気加熱力: | AC220V±10%50HZ |
| 精度を制御します: | ±0.2°C |
***picture for reference***

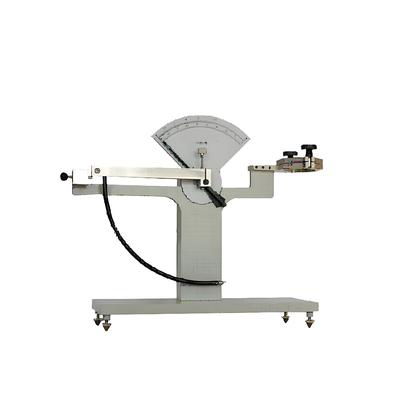

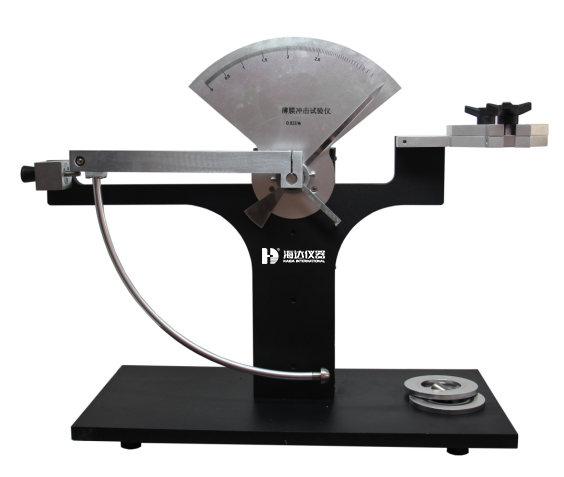

This product uses a standard pendulum head and a certain weight of pendulum arm impact to measure the pendulum impact resistance of plastic films, sheets, and composite films. Such as the impact toughness of PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber and other film materials used in food and medicine packaging bags, as well as metal foil materials. It can also be used to test the pendulum impact resistance of paper and paperboard, such as aluminized paper for cigarette packages, aluminum-plastic paper composite materials for Tetra Pak packaging, etc.
This instrument uses a semi-spherical punch to impact and break the sample at a certain impact speed, thereby measuring the energy consumed by the punch, and using this energy to evaluate the anti-pendulum impact energy value of the film sample.
GB/T8809, ASTM D3420
| Item | Description |
|---|---|
| Capacity | 3J |
| Scale value | 0.01J |
| Pendulum swing radius | R280 mm |
| Pendulum angle | 90° |
| Impact speed | 2.5m/S |
| Impact head size | Φ12.7 mm |
| Sample holder diameter | Φ60, Φ89mm |
| Sample size | 100 X 100 mm |
| Dimensions | 780 X 250 X 600 mm |
| Weight | 35kg |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
