商品の詳細:
|
| トルク範囲: | 0-200MV | 制御温度: | 室温70±1°Cから100±1°Cまで |
|---|---|---|---|
| 寸法: | 550×440×690 mm | 力: | AC 220V |
| 空気供給: | 0.6MPa | ローラーホイールの長さ: | 460mm |
| 試験モードA: | 室温 | テスト範囲: | 全範囲:0.55〜500mm |
| 回線試験所: | 3 | 温度表示のエラー: | 1℃ |
| 注入の時間: | 0-9999s [調整可能] | 材料の音速: | 1000-9999m/s |
| 火力: | 4kw | 表示: | デジタル |
| 仕様: | 20-88HRA、20-100HRB、20-70HRC |

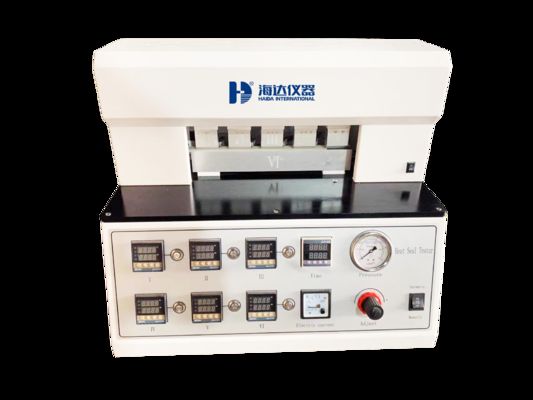

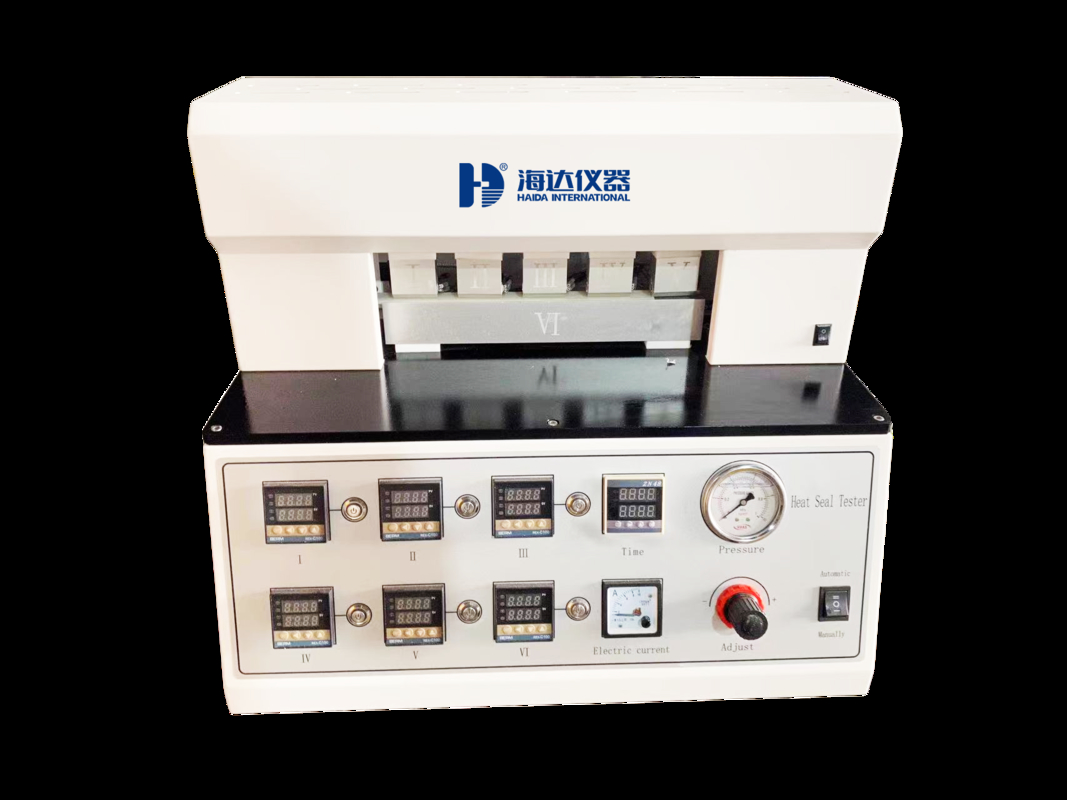

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
***Picture for reference***
PRODUCT DECRIPTION
Heat sealing tester adopt hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters , to provide users with accurate heat sealing test index. Fully digital control system, the key parts adopt international famous brand products, a high degree of automation, easy operation.
TEST STANDARD
ASTM F2029, QB/T 2358, YBB 00122003
TECHNICAL PARAMETERS
|
Item |
Description |
|
Heat sealing temperature |
RT+10~250℃ |
|
accuracy |
±1℃ |
|
Heating sealing pressure |
0~0.7Mpa(Adjustable) |
|
Heating sealing time |
0.01~99.99s(Adjustable) |
|
Heating sealing surface(L*W) |
40mmx10mm * 5 stations |
|
Heating method |
Single heating or double heating; upper and lower sealing knives can be individually switched and individually temperature controlled |
|
Test mode |
Manual mode / automatic mode (Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay); |
|
Air pressure |
≤0.7MPa (user-supplied) |
|
Machine Dimension(L*W*H) |
550*330*460mm |
|
Net weight |
Around 35kg |
|
Power |
1-PH, AC 220V,50Hz |
|
Standard configuration |
Foot switch + Air supply line + Air filter + Power cord |
ABOUT USHaida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
